Structural · S-KP68M

Embed at End of Panel

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Windows Facades / Cladding Roofs Canopies Floors / Slabs Decks Arches Anchors / Embeds

Connections

HSS Connection Embed Plate

About this detail

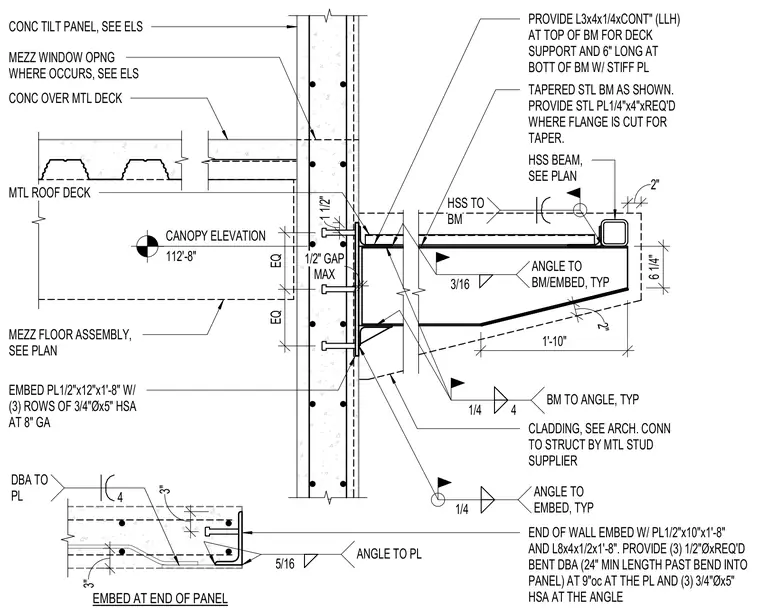

A structural connection at the end of a concrete tilt-up wall panel features a heavy embed plate assembly. An embed plate measuring 1/2 inch by 12 inches by 1 foot 8 inches is secured into the concrete panel using three rows of 3/4-inch diameter by 5-inch headed stud anchors at 8-inch gauges. A tapered steel beam connects to this embed via welded angle and plate connections, utilizing a 1/4-inch fillet weld at the beam-to-angle joint and 3/16-inch welds for the angle-to-embed connections. Additional support includes a continuous L3x4x1/4 angle at the top of the beam for deck support and a 6-inch long angle with a 1/4-inch stiffener plate at the bottom. A separate plan detail shows the end of wall embed utilizing a 1/2-inch by 10-inch by 1-foot 8-inch plate with an L8x4x1/2 angle, anchored by three 1/2-inch diameter bent deformed bar anchors extending 24 inches past the bend into the panel at 9 inches on center, alongside three 3/4-inch diameter by 5-inch headed stud anchors.
