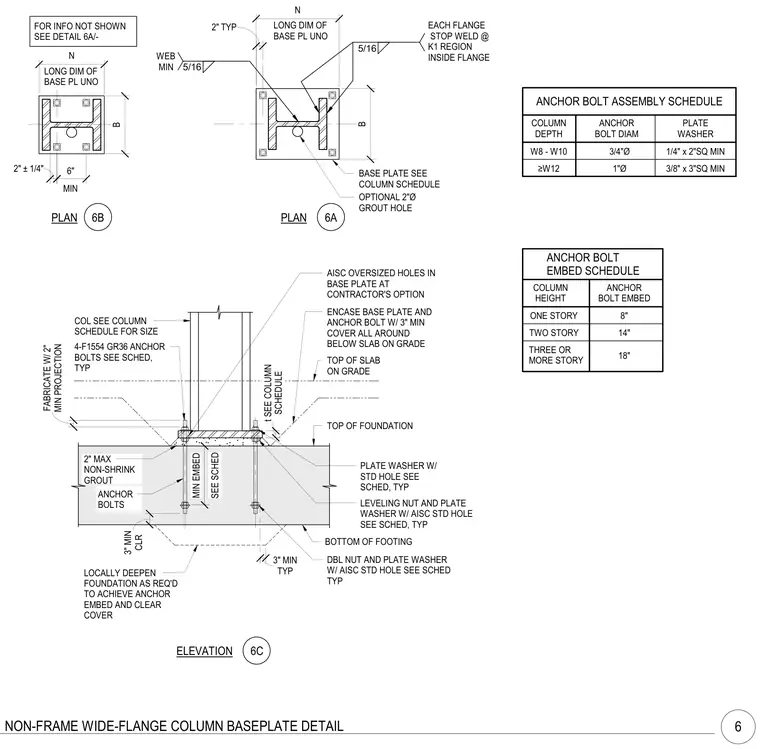

A wide-flange steel column base plate is anchored to a concrete foundation or footing. The assembly is secured by four ASTM F1554 Grade 36 anchor bolts equipped with plate washers and leveling nuts below the base plate, and double nuts with plate washers at the bottom embedment. Fillet welds connect the column flanges and web to the base plate, stopping short of the K1 region inside the flange as specified. A layer of non-shrink grout fills the gap beneath the base plate, and the entire base plate and anchor bolt assembly is encased with a minimum three inches of concrete cover below the slab on grade. Accompanying anchor bolt assembly and embed schedules dictate sizing and embedment depths based on column depth and building height.
ELEVATION PLAN WEB MIN EACH FLANGE STOP WELD @ K1 REGION INSIDE FLANGE OPTIONAL 2"Ø GROUT HOLE LONG DIM OF BASE PL UNO BASE PLATE SEE COLUMN SCHEDULE ENCASE BASE PLATE AND ANCHOR BOLT W/ 3" MIN COVER ALL AROUND BELOW SLAB ON GRADE PLATE WASHER W/ STD HOLE SEE SCHED, TYP TOP OF SLAB ON GRADE ANCHOR BOLTS 2" MAX NON-SHRINK GROUT BOTTOM OF FOOTING 5/16 N B 2" TYP 5/16 SCHEDULE t SEE COLUMN PLAN LONG DIM OF BASE PL UNO N B COL SEE COLUMN SCHEDULE FOR SIZE AISC OVERSIZED HOLES IN BASE PLATE AT CONTRACTOR'S OPTION MIN PROJECTION FABRICATE W/ 2" TOP OF FOUNDATION 4-F1554 GR36 ANCHOR BOLTS SEE SCHED, TYP LEVELING NUT AND PLATE WASHER W/ AISC STD HOLE SEE SCHED, TYP LOCALLY DEEPEN FOUNDATION AS REQ'D TO ACHIEVE ANCHOR EMBED AND CLEAR COVER DBL NUT AND PLATE WASHER W/ AISC STD HOLE SEE SCHED TYP COLUMN DEPTH ANCHOR BOLT DIAM PLATE WASHER W8 - W10 ≥W12 3/4"Ø 1"Ø 1/4" x 2"SQ MIN 3/8" x 3"SQ MIN COLUMN HEIGHT ANCHOR BOLT EMBED ONE STORY TWO STORY THREE OR MORE STORY 8" 14" 18" FOR INFO NOT SHOWN SEE DETAIL 6A/- 2" ± 1/4" 6B 6A 6C SEE SCHED MIN EMBED CLR 3" MIN TYP 3" MIN ANCHOR BOLT ASSEMBLY SCHEDULE MIN 6" ANCHOR BOLT EMBED SCHEDULE NON-FRAME WIDE-FLANGE COLUMN BASEPLATE DETAIL 6
