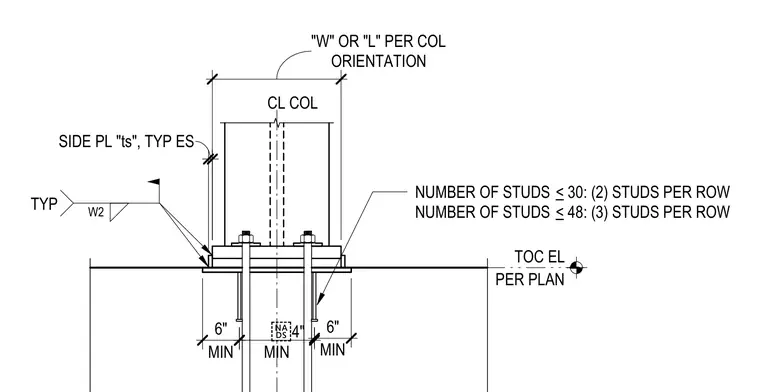

A structural steel column base plate orientation and anchor rod configuration. The column centerline is dimensioned with specific side plate thickness callouts and a minimum six-inch edge clearance. Welds connect the base components with specified fillet sizes. Stud counts per row are explicitly scheduled based on total stud quantity thresholds. Anchor bolts are embedded into the concrete foundation with specified minimum dimensions.
PER PLAN TOC EL NUMBER OF STUDS < 30: (2) STUDS PER ROW NUMBER OF STUDS < 48: (3) STUDS PER ROW ORIENTATION "W" OR "L" PER COL CL COL MIN 6" MIN 6" SIDE PL "ts", TYP ES TYP W2 MIN 4"
