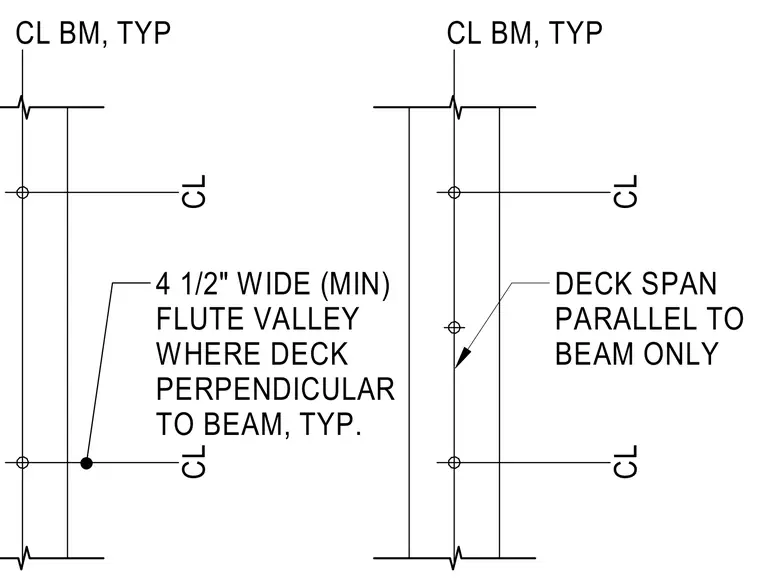

This structural framing layout specifies the alignment and clearance requirements for metal roof or floor decking relative to supporting steel beams. Where the deck runs perpendicular to the beam, a minimum four-and-a-half-inch wide flute valley is maintained typically. Where the deck spans parallel to the beam, the deck span is restricted exclusively to the centerline of the beam.
CL BM, TYP 4 1/2" WIDE (MIN) FLUTE VALLEY WHERE DECK PERPENDICULAR TO BEAM, TYP. CL BM, TYP CL CL DECK SPAN PARALLEL TO BEAM ONLY CL CL
