Structural · S-KNQEV

High Roof Popup Structure at Steel Column and Tilt-Up Panel

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Columns Roofs Decks Arches Anchors / Embeds

Connections

HSS Connection Welded Connection Embed Plate

About this detail

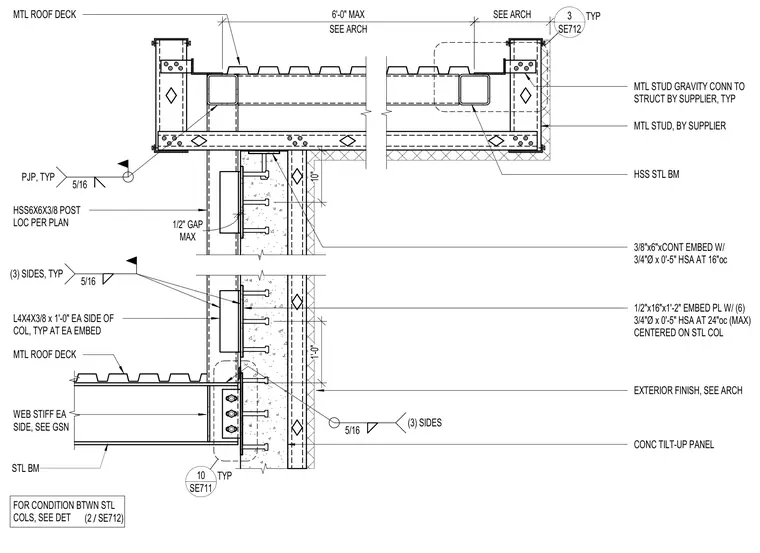

A high roof popup structure is supported by structural steel columns and framing adjacent to a concrete tilt-up panel wall. The assembly incorporates hollow structural section posts such as HSS6x6x3/8 located per plan, with continuous and plate embeds secured by headed stud anchors. Steel beams bear beneath metal roof decking with specific weld sizes, including five-sixteenth inch fillet welds on three sides and partial joint penetration welds typical at connections. Lateral and gravity connections for metal studs are provided by suppliers, and web stiffeners are attached to each side of the steel column web where required.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
