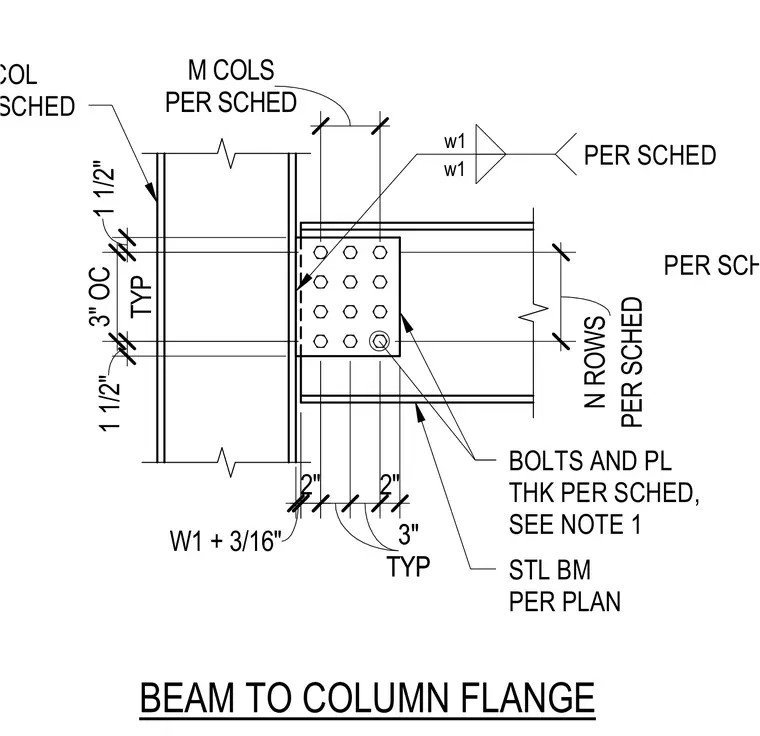

A steel beam connects to a structural steel column flange using a bolted web connection plate. The connection utilizes a multi-row bolt pattern spaced at three inches on center with standard edge distances. Fillet welds secure the connection plate to the member web and support per schedule requirements. All plate thicknesses, bolt sizes, and structural steel shapes are sized per the project schedule.
W1 + 3/16" BEAM TO COLUMN FLANGE 1 1/2" TYP 3" OC 1 1/2" TYP 3" TYP 3" 2" 2" STL BM PER PLAN PER SCHED M COLS PER SCHED w1 w1 PER SCHED N ROWS STL COL PER SCHED BOLTS AND PL THK PER SCHED, SEE NOTE 1 PER SCHED
