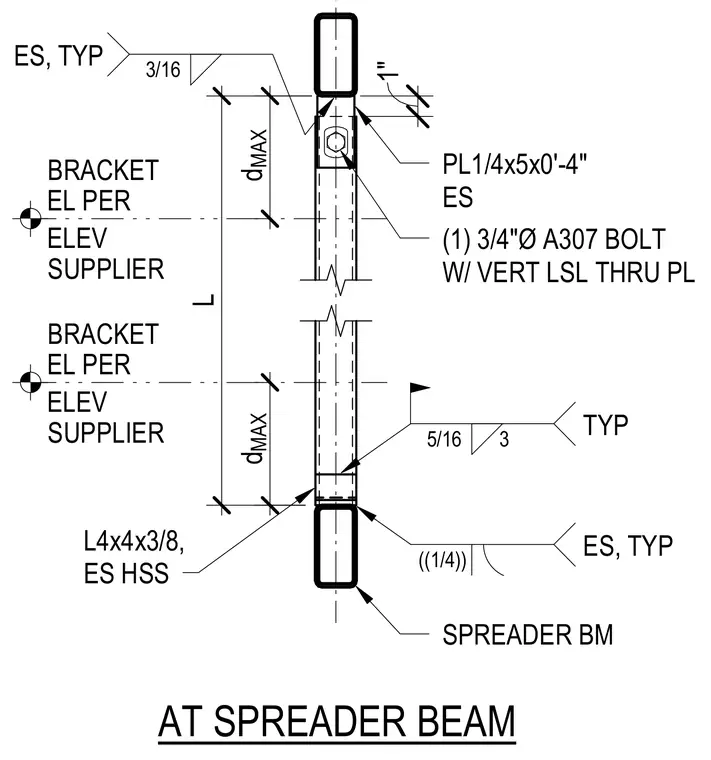

A built-up hollow structural section column splice at a spreader beam connection. The assembly incorporates a one-quarter-inch thick by five-inch wide by four-inch long plate secured with one three-quarter-inch diameter A307 bolt with a vertical LSL through plate on each side typically. Connection angles sized L4x4x3/8 are attached with three-sixteenth-inch welds on each side. Additional welding details feature five-sixteenth-inch welds spaced at three inches typically, alongside one-quarter-inch welds on each side typically. Bracket elevations are coordinated per the supplier.
TYP 3 5/16 SPREADER BM AT SPREADER BEAM 1" PL1/4x5x0'-4" ES (1) 3/4"Ø A307 BOLT W/ VERT LSL THRU PL ES, TYP 3/16 ES, TYP ((1/4)) L4x4x3/8, ES HSS ELEV EL PER SUPPLIER BRACKET ELEV EL PER SUPPLIER BRACKET L d d MAX MAX
