Structural · S-KNACN

Drag Beam Connections to Wide Flange Column

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

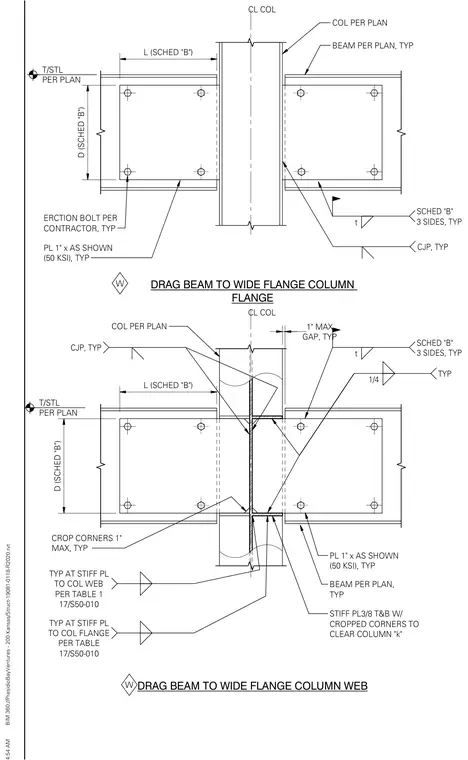

Drag beam connections frame into a wide-flange column at both the flange and web. The assembly incorporates one-inch-thick steel plates of fifty kilopounds per square inch yield strength sized per plan, secured to the beam top and bottom. Three-eighths-inch thick top and bottom stiffener plates with cropped corners clear the column fillet, welded with complete joint penetration welds and specified fillet welds to the column web and flange per the reference table. Erection bolts sized by the contractor temporarily position the members, while a one-inch maximum gap is maintained at the web connection.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
