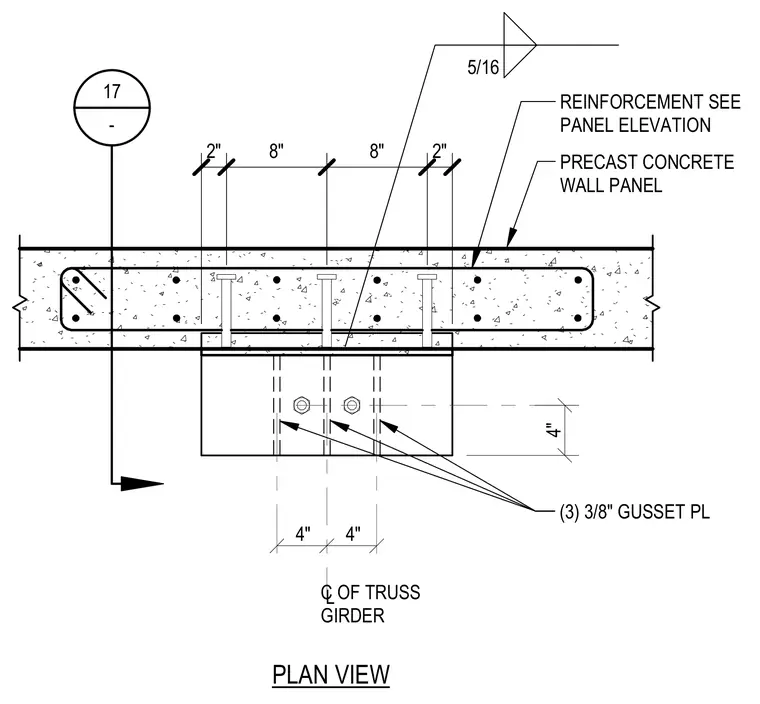

A truss girder frames into a precast concrete wall panel using three three-eighth-inch gusset plates. The connection includes reinforcing steel detailed per the panel elevation and stud anchors embedded in the concrete. Fillet welds of five-sixteenth-inch size secure the connection elements. Dimensions indicate standard spacing of four inches and eight inches across the assembly.
4" 4" 4" (3) 3/8" GUSSET PL C OF TRUSS GIRDER L PLAN VIEW 2" 8" 8" 2" REINFORCEMENT SEE PANEL ELEVATION PRECAST CONCRETE WALL PANEL 5/16 17 -
