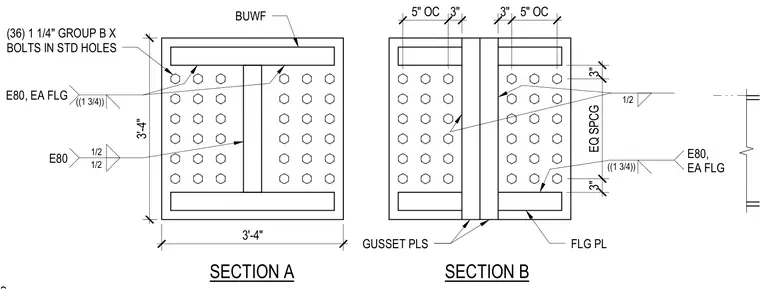

This structural connection detail features thirty-six one-and-a-quarter-inch Group B X bolts in standard holes attaching through flange plates. E80 electrodes provide the specified weld sizes, including half-inch fillet welds at the web and flange connections. Gusset plates interface with the structural members, showing symmetrical three-foot-four-inch dimensions and detailed edge spacings. Equal spacing of three inches and five inches on center governs the bolt layout across the joint plates.
3" 5" OC 3" 5" OC 3" EQ SPCG 3" BUWF (36) 1 1/4" GROUP B X BOLTS IN STD HOLES E80, EA FLG ((1 3/4)) 1/2 E80 1/2 1/2 E80, EA FLG ((1 3/4)) 3'-4" 3'-4" FLG PL GUSSET PLS SECTION A SECTION B
