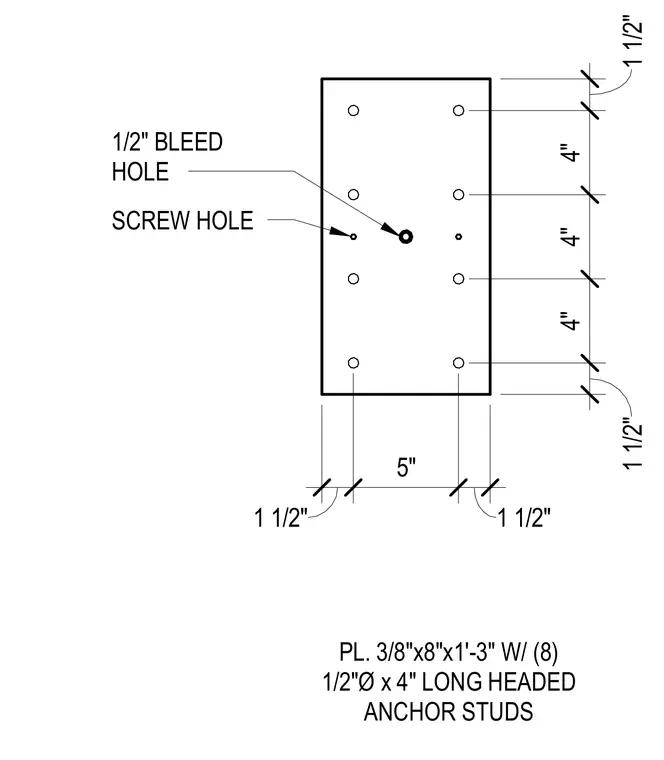

A three-eighths-inch by eight-inch by one-foot-three-inch steel embed plate is welded with eight half-inch diameter by four-inch long headed anchor studs. The plate includes a central half-inch bleed hole and two adjacent screw holes for fastening during construction. Dimensions specify a five-inch transverse spacing and four-inch longitudinal spacing between anchor studs with one-and-a-half-inch edge distances.
PL. 3/8"x8"x1'-3" W/ (8) 1/2"Ø x 4" LONG HEADED ANCHOR STUDS 1 1/2" 4" 4" 4" 1 1/2" 1 1/2" 5" 1 1/2" 1/2" BLEED HOLE SCREW HOLE
