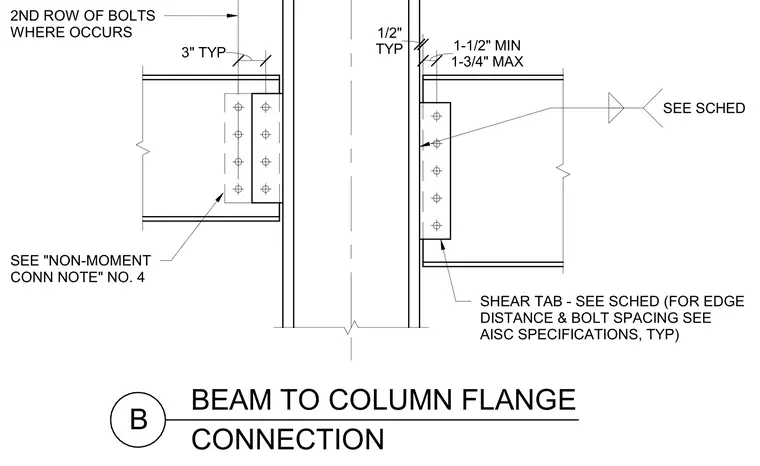

Steel floor beams frame into the flange of a structural steel column using a single plate shear tab welded to the column and bolted to the beam web. A second row of bolts is provided where indicated by the non-moment connection notes. Edge distances and bolt spacings follow standard American Institute of Steel Construction specifications with a one-half-inch typical clearance. The shear tab dimensions and plate thickness are sized per schedule.
BEAM TO COLUMN FLANGE B CONNECTION 2ND ROW OF BOLTS WHERE OCCURS SEE "NON-MOMENT CONN NOTE" NO. 4 SHEAR TAB - SEE SCHED (FOR EDGE DISTANCE & BOLT SPACING SEE AISC SPECIFICATIONS, TYP) SEE SCHED TYP 1/2" 1-3/4" MAX 1-1/2" MIN 3" TYP
