A structural steel column base plate is anchored to a concrete foundation using ASTM F1554 anchor rods fitted with double heavy hex nuts and welded plate washers. A two-inch nominal non-shrunk grout layer fills the space beneath the base plate, complete with a shear key and blockout filled with non-shrink grout as required. The column flanges feature complete joint penetration welds, designated as demand critical at the contractor's option.

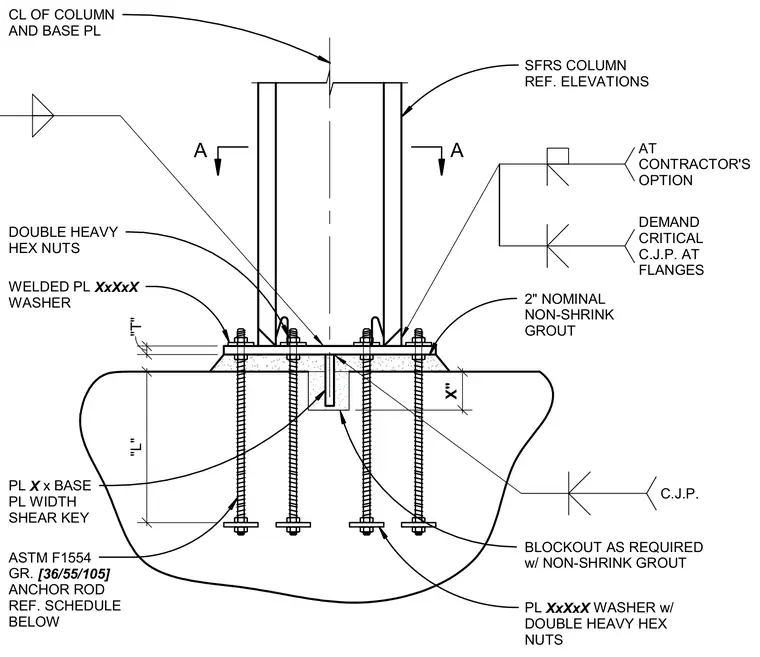

A A SFRS COLUMN REF. ELEVATIONS 2" NOMINAL NON-SHRINK GROUT ASTM F1554 GR. [36/55/105] ANCHOR ROD REF. SCHEDULE BELOW DOUBLE HEAVY HEX NUTS CL OF COLUMN AND BASE PL PL XxXxX WASHER w/ DOUBLE HEAVY HEX NUTS AT CONTRACTOR'S OPTION DEMAND CRITICAL C.J.P. AT FLANGES WELDED PL XxXxX WASHER PL X x BASE PL WIDTH SHEAR KEY C.J.P. "T" "L" BLOCKOUT AS REQUIRED w/ NON-SHRINK GROUT X"
