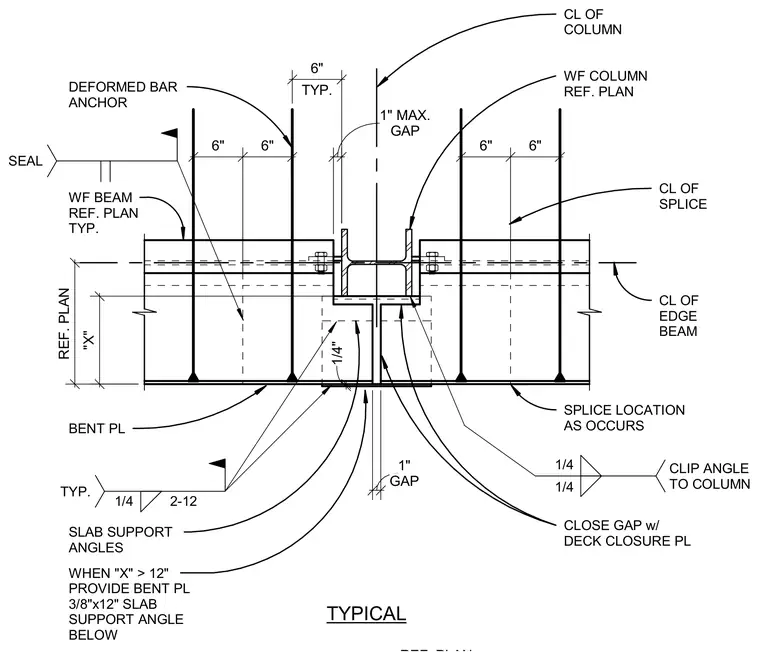

This connection assembly details a wide-flange column splice with an edge beam, tied together using clip angles attached to the column. A bent plate is installed below the slab support angles, which bridge a one-inch maximum gap across the splice location. When dimension X exceeds twelve inches, a three-eighths by twelve-inch bent plate slab support angle is provided below. Deformed bar anchors tie the surrounding concrete slab, and the deck gap is closed using a deck closure plate. Fillet welds of one-quarter inch size are specified at the clip angles and slab support components.
CL OF COLUMN WF COLUMN REF. PLAN CLOSE GAP w/ DECK CLOSURE PL DEFORMED BAR ANCHOR WF BEAM REF. PLAN TYP. BENT PL SLAB SUPPORT ANGLES GAP 1" TYP. 6" TYPICAL TYP. WHEN "X" > 12" PROVIDE BENT PL 3/8"x12" SLAB SUPPORT ANGLE BELOW "X" GAP 1" MAX. 6" 6" 6" 6" REF. PLAN CL OF EDGE BEAM SPLICE LOCATION AS OCCURS CL OF SPLICE CLIP ANGLE TO COLUMN SEAL 1/4" 1/4 1/4 1/4 2-12
