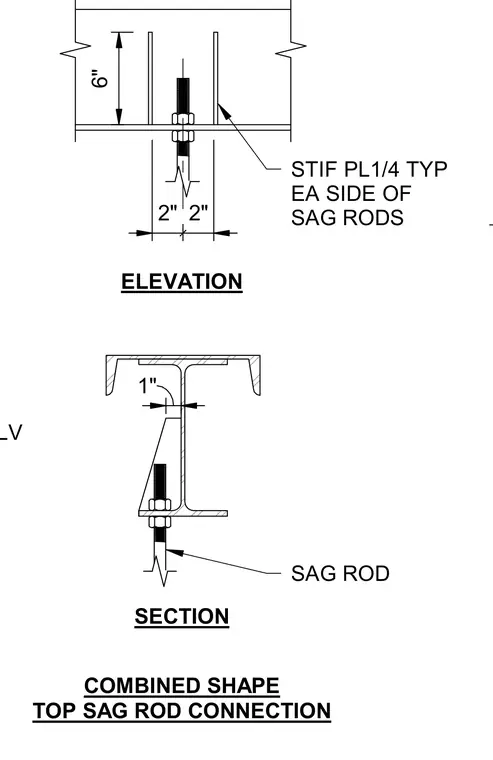

A structural steel top sag rod connection framing detail featuring a combined shape member with an L4x3x1/2 by zero-foot-six-inch long leg vertical angle bracket. Quarter-inch stiffener plates are positioned typically on each side of the sag rods. Nuts and threaded rods secure the assembly with specified dimensional clearances.
L4X3X1/2X0'-6" LLV SAG ROD 6" SECTION ELEVATION 2" 2" 1" STIF PL1/4 TYP EA SIDE OF SAG RODS COMBINED SHAPE TOP SAG ROD CONNECTION
