Dunnage Platform Beam to Beam Connection

Materials

Steel

Elements

Beams Connections / Plates

Connections

Shear Tab / Single Plate Beam-to-Beam Bolted Connection

About this detail

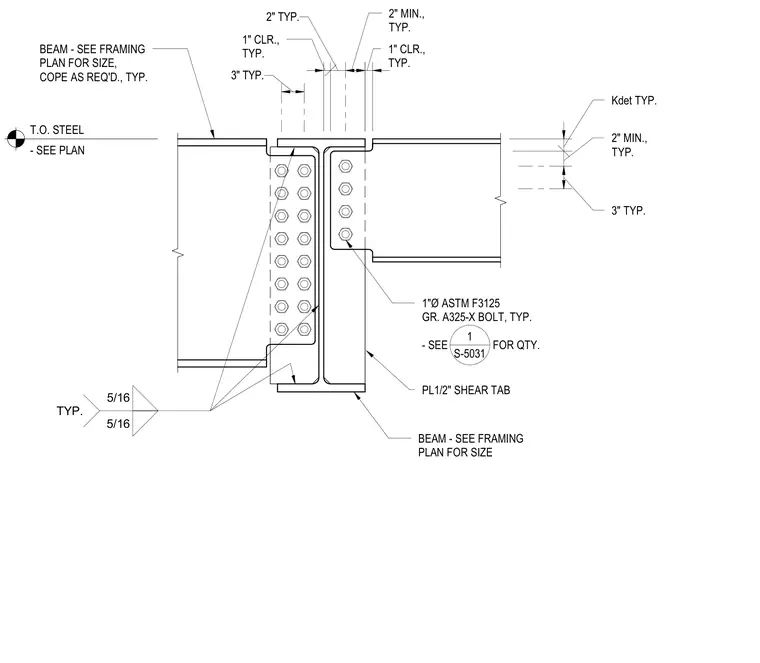

The supported steel beam frames into the web of the supporting steel beam using a welded one-half-inch thick shear tab plate. The connection is secured with one-inch diameter ASTM F3125 Grade A325-X high-strength bolts, with quantities sized per plan. The supported beam flange is coped as required with standard clearances maintained at the top and web intersections. Fillet welds of five-sixteenths inch size attach the shear tab to the supporting beam.
