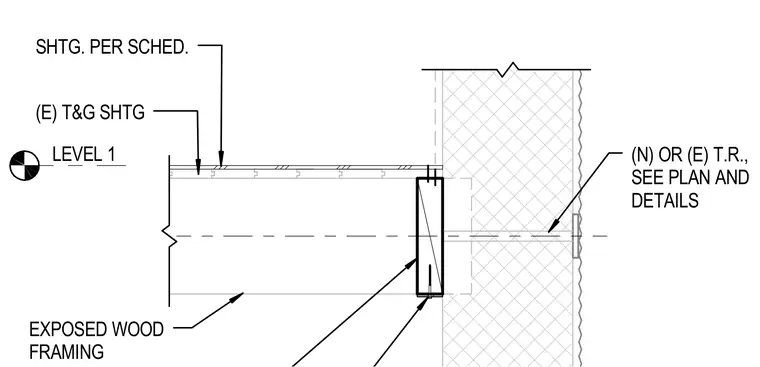

Exposed wood framing floor construction at Level 1 featuring tongue and groove sheathing sized per schedule. The floor assembly connects to new or existing threaded rods detailed on plan. The sheathing bears over exposed wood framing members.
(N) OR (E) T.R., SEE PLAN AND DETAILS EXPOSED WOOD FRAMING LEVEL 1 (E) T&G SHTG SHTG. PER SCHED.
