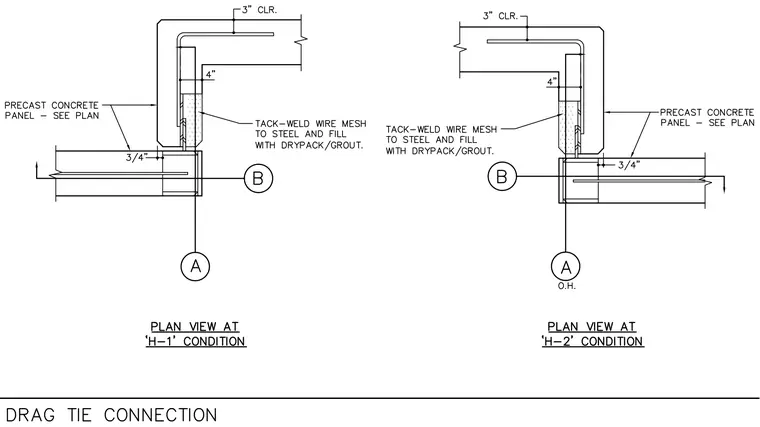

Precast concrete panel drag tie connections for H-1 and H-2 conditions feature precast concrete panels sized per plan with reinforcing mesh tack-welded to steel and finished with drypack grout. Dimensions include three inches of clearance and four inches of embedment spacing.
