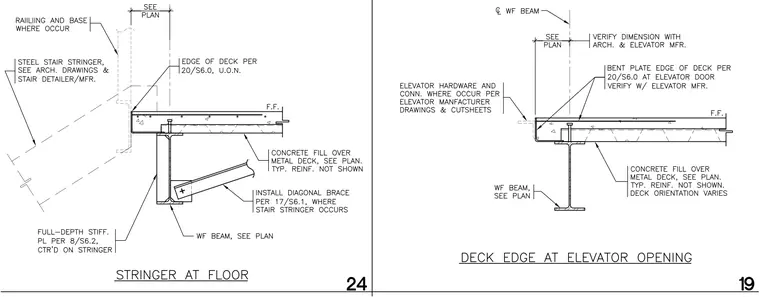

The left detail shows a concrete-filled metal deck bearing on a wide-flange beam, with a steel stair stringer supported by a full-depth stiffener plate and a diagonal brace installed per sheet S6.1. The right detail shows a bent plate edge of deck framing at an elevator door opening, supported by a wide-flange beam with dimensions verified against architectural and elevator manufacturer drawings. Both assemblies feature finished floor elevations, specified deck edge limits, and structural framing sized per plan.
