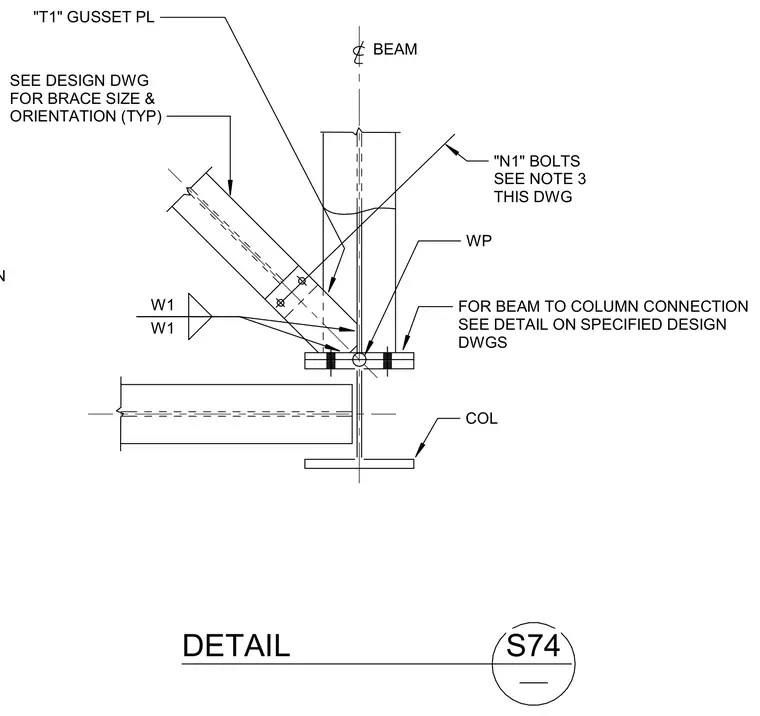

A structural steel diagonal brace connects to a column using a gusset plate welded with fillet welds and bolted with bolts sized per notes. The working point is established at the intersection of the framing centerlines. A beam connects to the column as specified on design drawings. Brace size and orientation are sized per design drawings.
FOR BEAM TO COLUMN CONNECTION COL WP BEAM SEE DESIGN DWG FOR BRACE SIZE & ORIENTATION (TYP) W1 W1 DETAIL S74 "N1" BOLTS SEE NOTE 3 THIS DWG "T1" GUSSET PL FOR BEAM TO COLUMN CONNECTION SEE DETAIL ON SPECIFIED DESIGN DWGS
