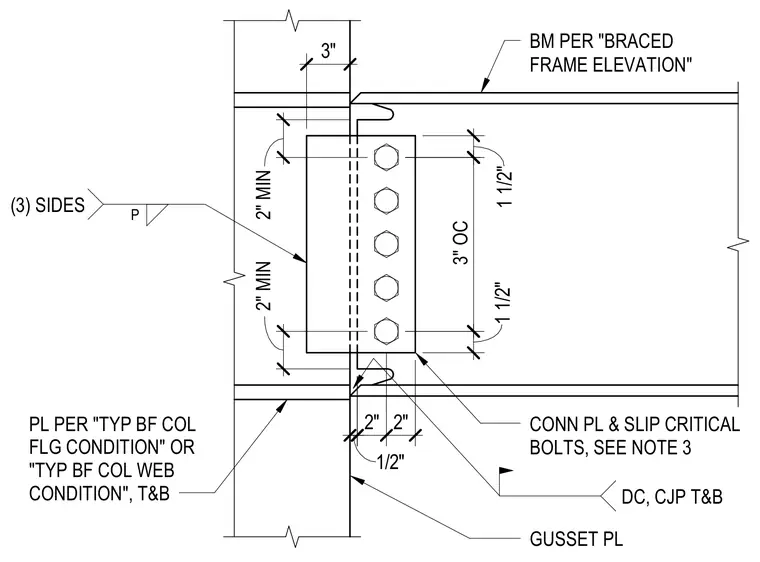

A structural steel beam frames into a column using top and bottom gusset plates welded to the column flange or web. A connection plate attaches the beam web using slip-critical bolts spaced at three inches on center with one-and-a-half-inch edge distances. Complete-joint-penetration welds secure the gusset plates to the column with three-sided welding configurations. Additional plates are sized per standard braced frame column flange or web conditions.
PL PER "TYP BF COL FLG CONDITION" OR "TYP BF COL WEB CONDITION", T&B GUSSET PL CONN PL & SLIP CRITICAL BOLTS, SEE NOTE 3 BM PER "BRACED FRAME ELEVATION" 1 1/2" 12" 1 1/2" 3" OC 2" 2" 1/2" DC, CJP T&B 2 5/8" 2 5/8" 3" 2" MIN 2" MIN (3) SIDES P
