Structural · S-KKCWA

Pan Joist to Concrete Column Detail

Materials

Elements

About this detail

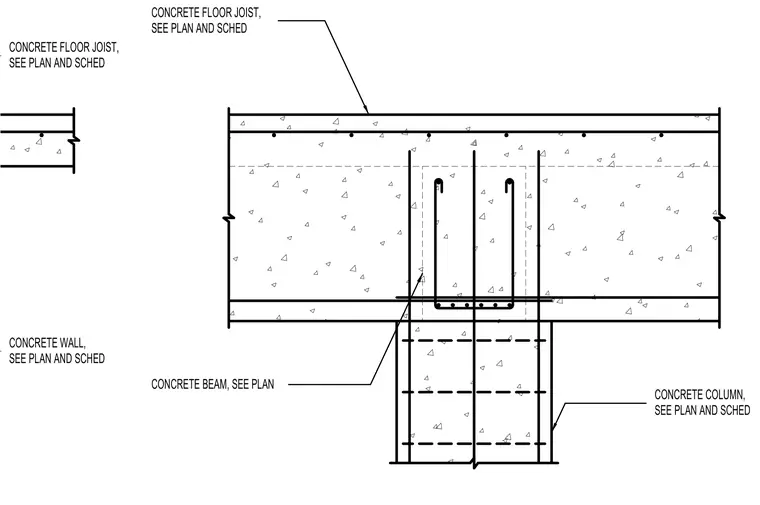

Concrete floor joists frame into a monolithic concrete column and beam structure, with sizing and reinforcement directed per the structural plans and schedules. The assembly integrates concrete floor joists, a supporting concrete beam, and a concrete column with continuous reinforcing steel bars and stirrups. Sizing for all concrete elements is governed by the structural plans and schedules.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
