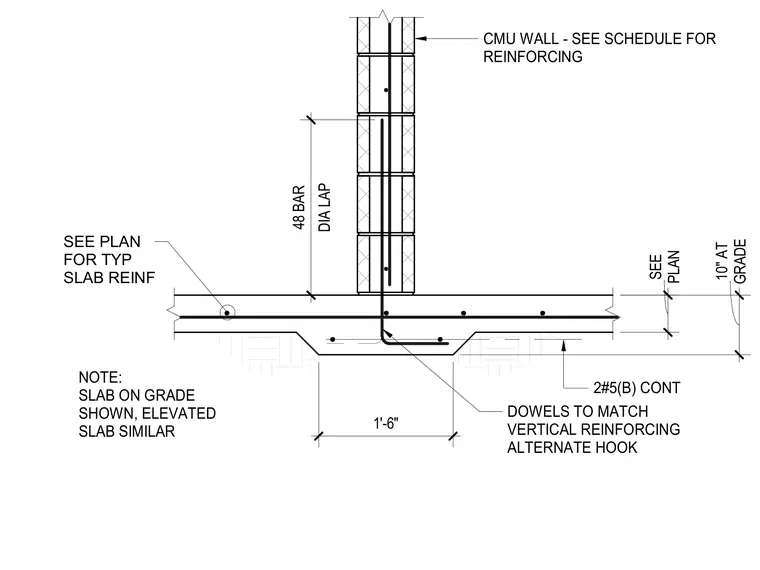

A concrete slab connects to a concrete masonry unit wall using continuous vertical dowels with alternate hooks extending into the thickened slab. Two continuous number five bottom bars run through the thickened slab section per structural plans. A forty-eight bar diameter lap splice length connects the dowels to the wall vertical reinforcing. Slabs on grade are shown with elevated slab details noted as similar.
SEE PLAN FOR TYP SLAB REINF NOTE: SLAB ON GRADE SHOWN, ELEVATED SLAB SIMILAR 2#5(B) CONT DOWELS TO MATCH VERTICAL REINFORCING ALTERNATE HOOK CMU WALL - SEE SCHEDULE FOR REINFORCING 1'-6" PLAN SEE GRADE 10" AT DIA LAP 48 BAR
