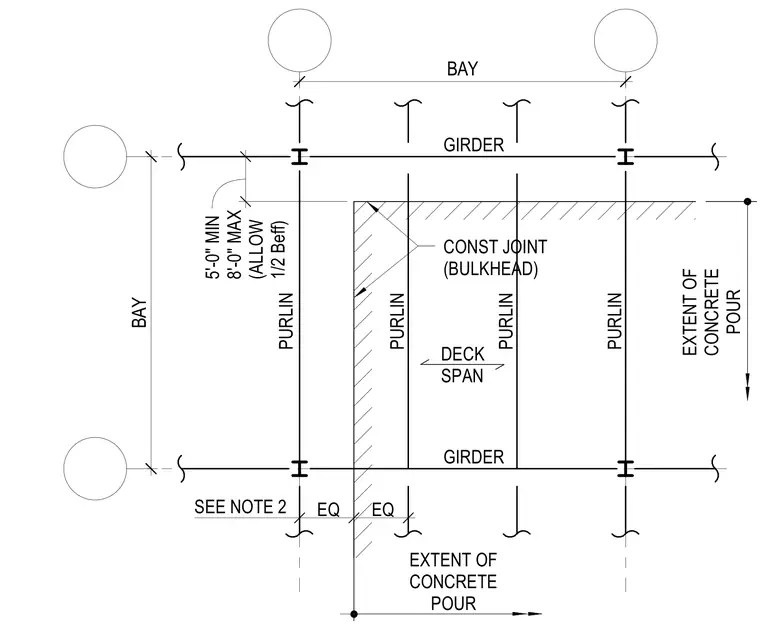

A construction joint with a bulkhead is positioned between purlins spanning between structural steel girders. The joint is located with a minimum dimension of five feet and a maximum of eight feet, allowing for one-half of the effective width. Extent of concrete pour boundaries and equal spacing dimensions are indicated across the framing bay.
EXTENT OF CONCRETE POUR EXTENT OF CONCRETE POUR SEE NOTE 2 EQ EQ GIRDER PURLIN PURLIN GIRDER CONST JOINT (BULKHEAD) DECK SPAN 5'-0" MIN 8'-0" MAX (ALLOW 1/2 Beff) BAY BAY PURLIN PURLIN
