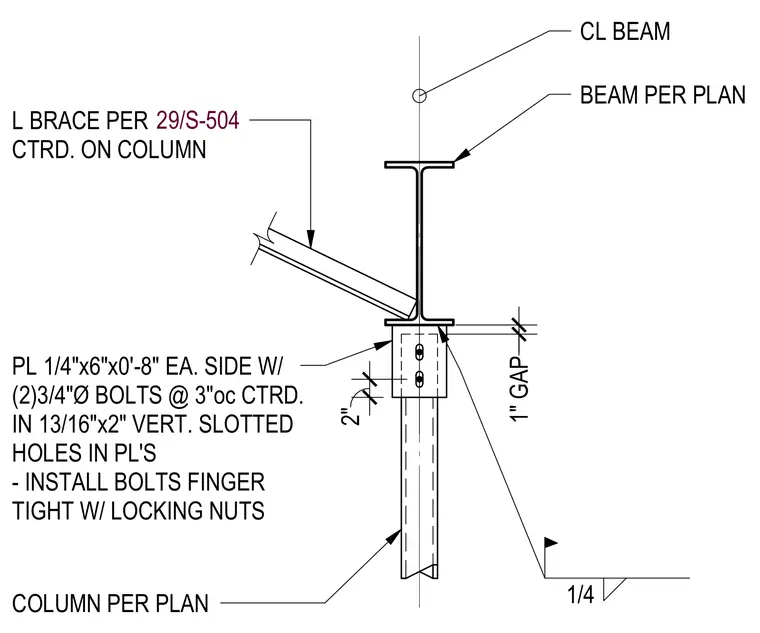

A structural brace connects to a column and beam assembly using quarter-inch thick steel plates measuring six inches by eight inches on each side. Two three-quarter-inch diameter bolts spaced at three inches on center secure the plates through thirteen-sixteenths by two-inch vertical slotted holes. Bolts are installed finger tight with locking nuts to permit movement. A one-inch gap is maintained between the components, and a quarter-inch fillet weld is detailed at the base of the connection.
PL 1/4"x6"x0'-8" EA. SIDE W/ (2)3/4"Ø BOLTS @ 3"oc CTRD. IN 13/16"x2" VERT. SLOTTED HOLES IN PL'S - INSTALL BOLTS FINGER TIGHT W/ LOCKING NUTS BEAM PER PLAN L BRACE PER CTRD. ON COLUMN COLUMN PER PLAN 1/4 2" 1" GAP 29/S-504 CL BEAM
