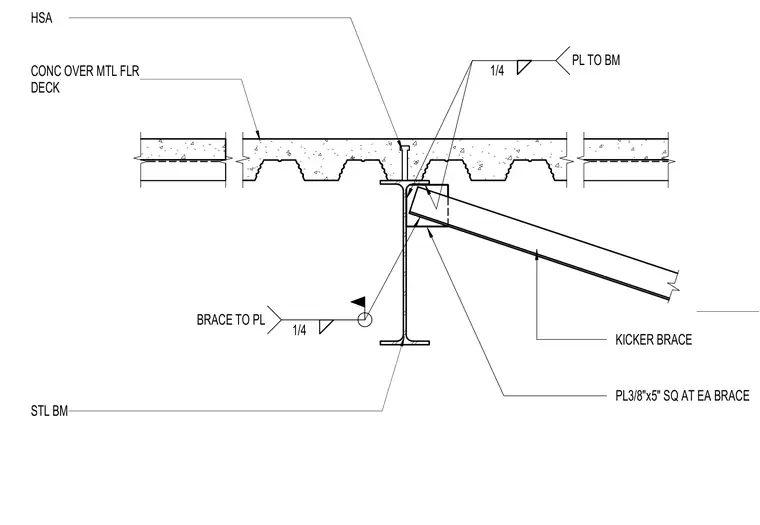

A structural steel kicker brace frames into the web of a supporting steel beam beneath a concrete over metal floor deck assembly. A square plate measuring three-eighths by five inches is welded to the beam web with a one-quarter-inch fillet weld. The kicker brace attaches to this plate using a one-quarter-inch fillet weld with a field weld symbol. An anchor or embedment labeled HSA ties into the concrete slab directly above the beam flange.
PL3/8"x5" SQ AT EA BRACE KICKER BRACE STL BM CONC OVER MTL FLR DECK HSA 1/4 PL TO BM 1/4 BRACE TO PL
