Roof Overhang at High Roof Steel Framing and Stud Wall Detail

Materials

Steel Timber / Wood

Elements

Beams Walls Windows Curtain Walls Roofs Decks Arches Bracing Connections / Plates

Connections

Bracing Connection Welded Connection Deck Attachment Timber / Mass-Timber Connection

About this detail

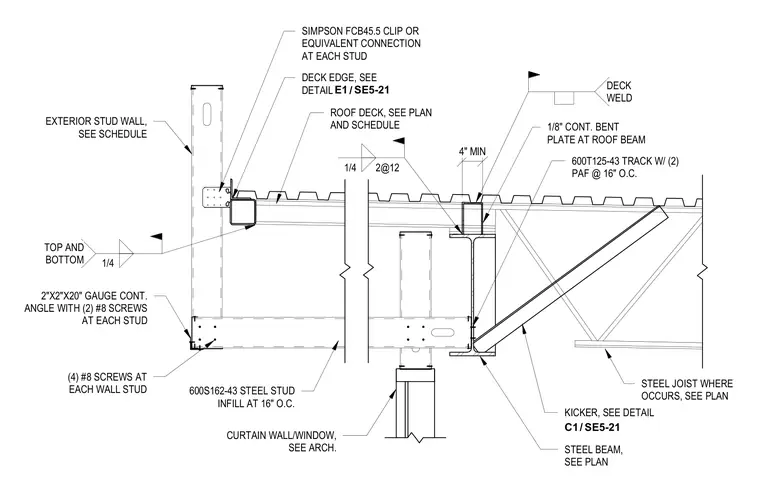

A high roof overhang connection features an exterior cold-formed steel stud wall supported by a structural steel beam and roof framing. The exterior stud wall uses 600S162-43 steel studs spaced at sixteen inches on center with a 600T125-43 track secured by two powder-actuated fasteners at sixteen inches on center. A continuous two-inch by two-inch by twenty-gauge angle connects the base of the stud wall with four number eight screws at each wall stud. The roof deck bears over a steel beam and is anchored with deck welds spaced at two at twelve inches with a four-inch minimum. A continuous one-eighth-inch bent plate is welded to the top and bottom of the roof beam with quarter-inch fillet welds. A Simpson FCB45.5 clip or equivalent connects the deck edge to each stud, and a structural steel kicker brace frames into the steel beam from a steel joist below.
