A structural steel column bears on a steel base plate set over one and a half inches of non-shrink grout atop a reinforced concrete pier and footing. The concrete pier rests on a reinforced concrete footing, while an adjacent concrete slab on grade ties into the assembly. Anchor rods secure the column base to the foundation elements below.

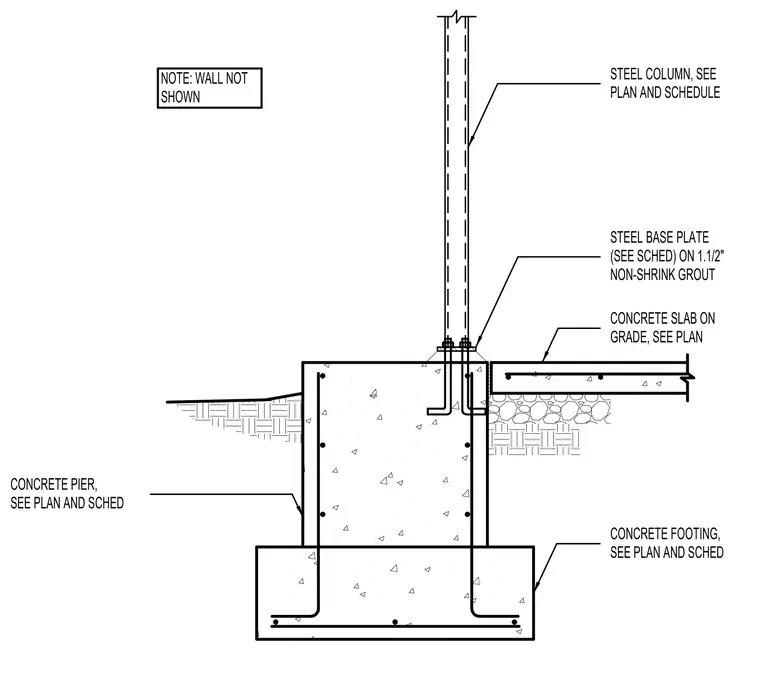

STEEL COLUMN, SEE PLAN AND SCHEDULE STEEL BASE PLATE (SEE SCHED) ON 1.1/2" NON-SHRINK GROUT CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE FOOTING, SEE PLAN AND SCHED CONCRETE PIER, SEE PLAN AND SCHED NOTE: WALL NOT SHOWN
