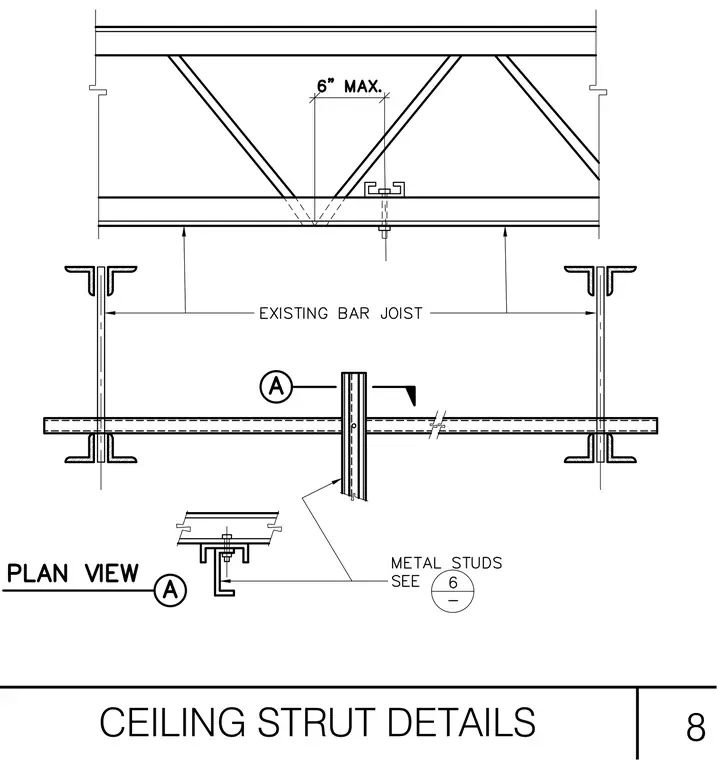

A ceiling strut is attached to the bottom chord of an existing open web steel bar joist with a bolted bracket connection. A maximum six-inch offset is maintained from the joist web diagonal intersection to the strut hanger. Perpendicular metal studs span between supporting members, sized as indicated on detail six. A plan view confirms the alignment of the framing components relative to the structural grid.
