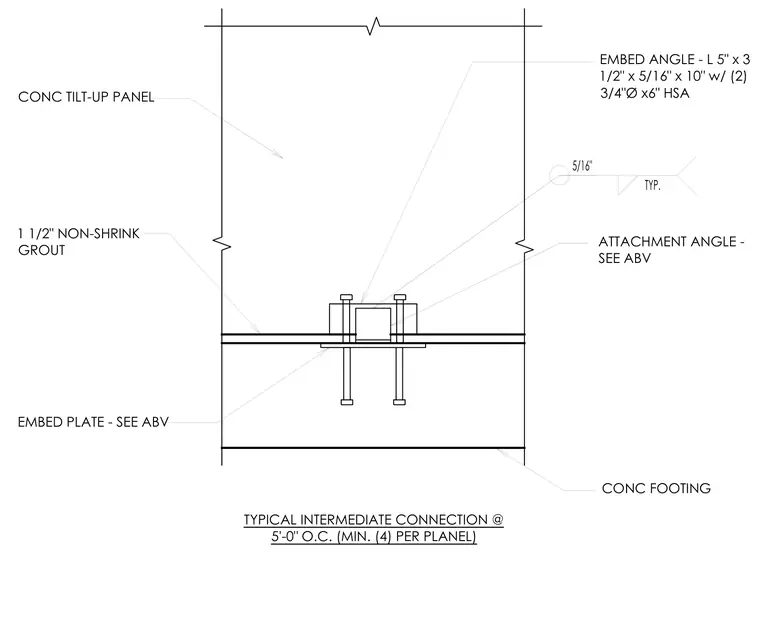

A concrete tilt-up wall panel bears on a concrete footing with a one-and-a-half-inch non-shrink grout layer. The panel connects to the foundation using an embed plate and a five-inch by three-and-a-half-inch by five-sixteenth-inch by ten-inch attachment angle secured by two three-quarter-inch diameter by six-inch headed stud anchors. A five-sixteenth-inch typical fillet weld joins the steel attachment components. This intermediate connection occurs at five-foot spacing on center with a minimum of four connections per panel.
TYPICAL INTERMEDIATE CONNECTION @ 5'-0" O.C. (MIN. (4) PER PLANEL) TYP. 5/16" ATTACHMENT ANGLE - SEE ABV EMBED ANGLE - L 5" x 3 1/2" x 5/16" x 10" w/ (2) 3/4"Ø x6" HSA EMBED PLATE - SEE ABV 1 1/2" NON-SHRINK GROUT CONC TILT-UP PANEL CONC FOOTING
