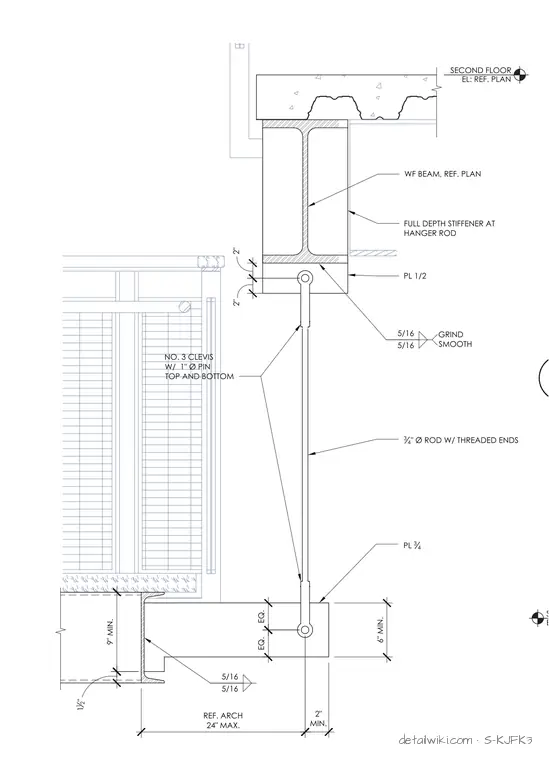

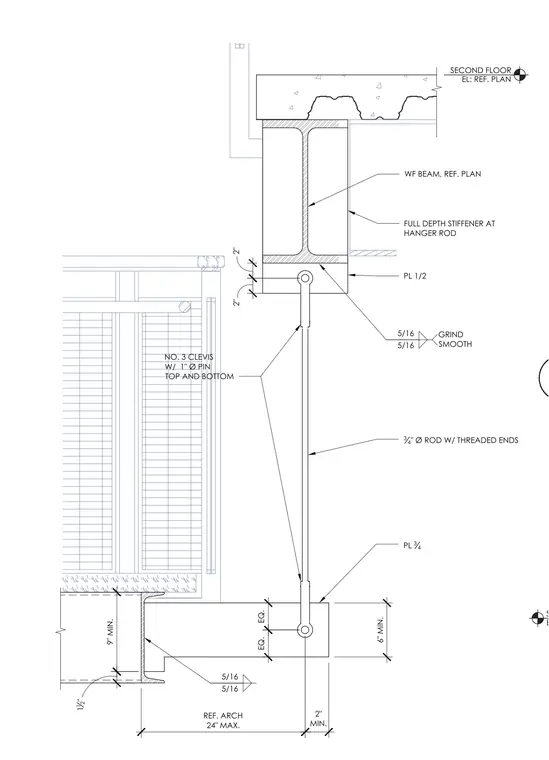

A three-quarter-inch diameter threaded rod hangs from a wide-flange beam above, supported by a half-inch plate welded to the bottom flange with five-sixteenth-inch fillet welds ground smooth. A full-depth stiffener plate is welded inside the wide-flange beam web at the hanger rod location. A number three clevis with a one-inch diameter pin secures the top and bottom of the rod assembly. The lower end of the rod attaches with another clevis and pin to a three-quarter-inch plate connected to the structural element below.
SECOND FLOOR EL: REF. PLAN 6" MIN. 1 12 " 9" MIN. EQ. EQ. 2" 2" GRIND SMOOTH 5/16 5/16 SECOND FLOOR EL: REF. PLAN 5/16 5/16 WF BEAM, REF. PLAN FULL DEPTH STIFFENER AT HANGER ROD PL 1/2 NO. 3 CLEVIS W/ 1" Ø PIN TOP AND BOTTOM 3 4 " Ø ROD W/ THREADED ENDS PL 3 4 REF. ARCH 24" MAX. 2" MIN.
