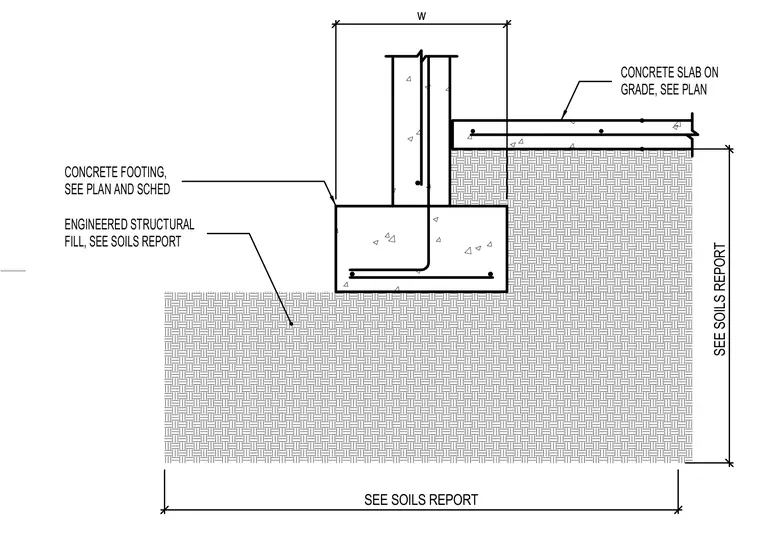

An engineered structural fill supports a concrete footing and a concrete slab on grade in accordance with the project soils report. The concrete footing dimensions, reinforcement, and schedule are sized per plan. A concrete slab on grade bears directly over the compacted structural fill and adjacent soil layers. Depth and compaction requirements for the fill are governed by geotechnical specifications.
ENGINEERED STRUCTURAL FILL, SEE SOILS REPORT CONCRETE FOOTING, SEE PLAN AND SCHED CONCRETE SLAB ON GRADE, SEE PLAN w SEE SOILS REPORT SEE SOILS REPORT
