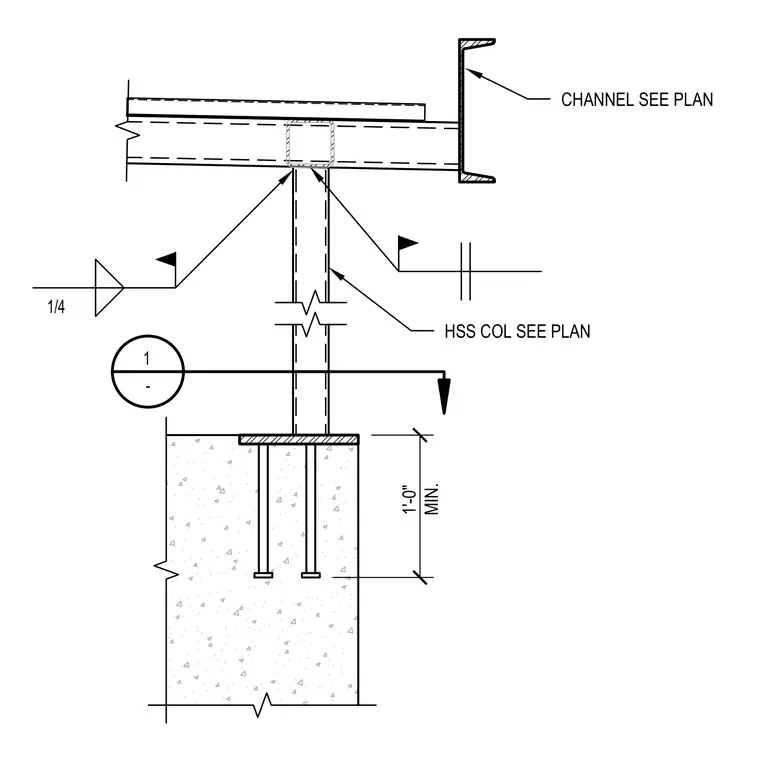

A hollow structural section column bears on a base plate anchored into a concrete foundation with cast-in-place anchor bolts requiring a minimum one-foot embedment depth. The top of the column connects to framing members with a one-quarter-inch fillet weld, accompanied by a channel member sized per plan. An intersecting structural member frames into the assembly with a field weld indicated by a flag symbol.
1 - 1'-0" MIN. 1/4 HSS COL SEE PLAN CHANNEL SEE PLAN
