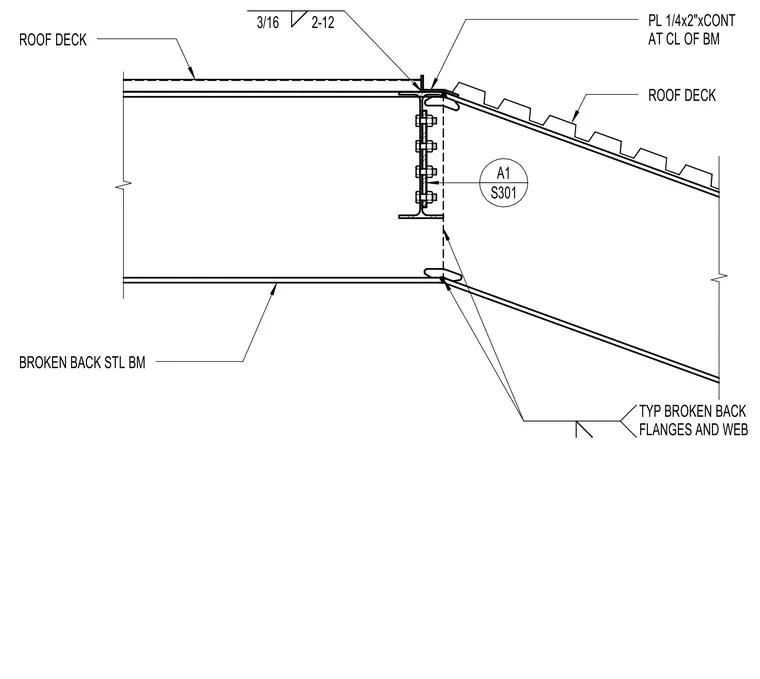

A broken back steel beam supports roof deck assemblies on both sides of a sloped ridge transition. The connection utilizes a continuous one-quarter by two-inch steel plate located at the centerline of the beam, welded with a three-sixteenths inch fillet weld with two to twelve spacing typically applied to the broken back flanges and web. A vertical bolted web connection plate ties the intersecting beam segments together underneath the roof deck.
ROOF DECK ROOF DECK BROKEN BACK STL BM PL 1/4x2"xCONT AT CL OF BM S301 A1 3/16 2-12 TYP BROKEN BACK FLANGES AND WEB
