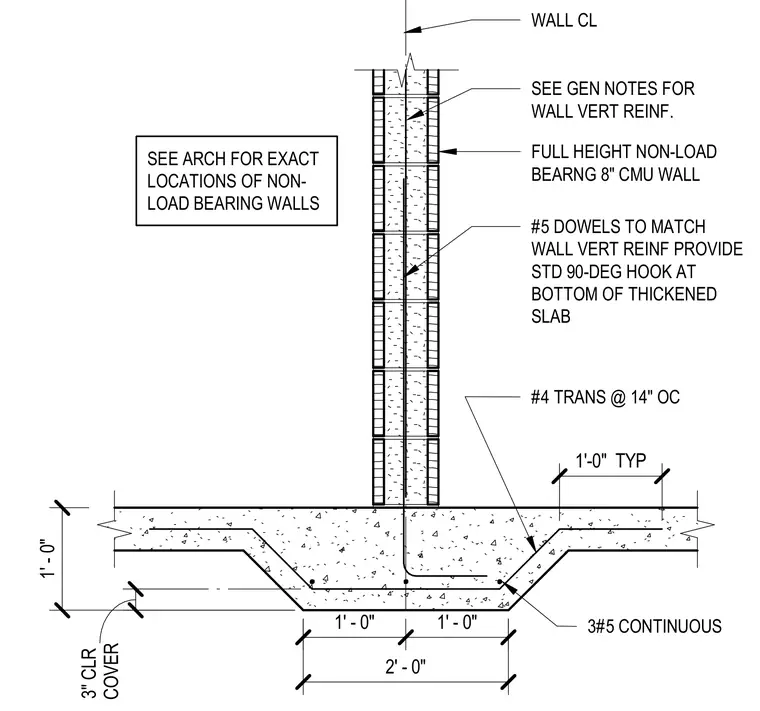

An eight-inch full-height non-load bearing concrete masonry unit wall bears on a thickened concrete slab with a one-foot depth and a two-foot bottom width. The wall is anchored with number five vertical dowels matching the wall vertical reinforcement, featuring standard ninety-degree hooks embedded at the bottom of the thickened slab. The slab section contains three number five continuous reinforcing bars alongside number four transverse bars spaced at fourteen inches on center with three inches of clear cover. General notes dictate wall vertical reinforcement and exact wall locations are coordinated with architectural drawings.
1' - 0" 1' - 0" 2' - 0" 1'-0" TYP SEE ARCH FOR EXACT LOCATIONS OF NON- LOAD BEARING WALLS WALL CL SEE GEN NOTES FOR WALL VERT REINF. FULL HEIGHT NON-LOAD BEARNG 8" CMU WALL #5 DOWELS TO MATCH WALL VERT REINF PROVIDE STD 90-DEG HOOK AT BOTTOM OF THICKENED SLAB #4 TRANS @ 14" OC 3#5 CONTINUOUS 1' - 0" 3" CLR COVER
