An intermediate elevator rail connection joins a structural steel column to an elevator pit footing with anchor rods through a base plate over a one-and-a-half-inch non-shrink grout pad. A hollow structural section beam frames into the steel column with typical five-sixteenth-inch fillet welds. The lower steel column connects to the base plate using a one-quarter-inch fillet weld.

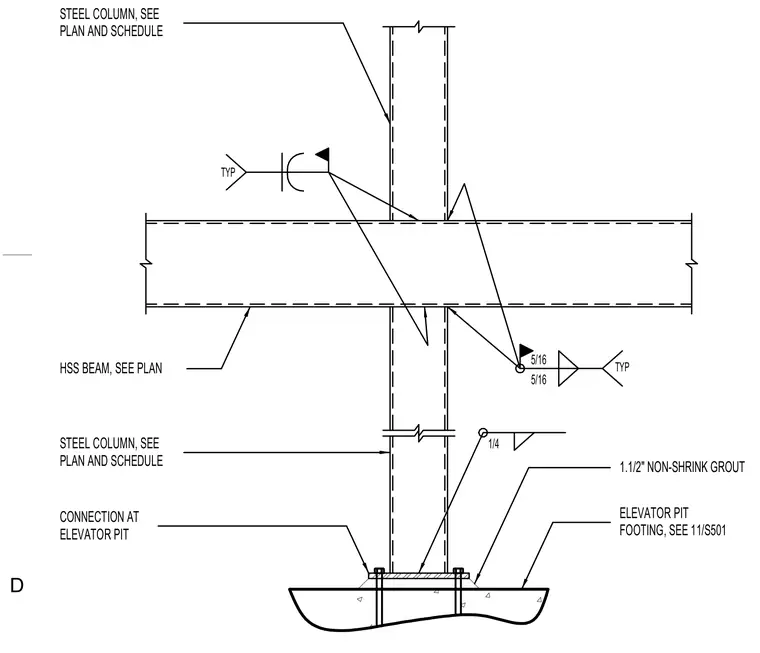

STEEL COLUMN, SEE PLAN AND SCHEDULE HSS BEAM, SEE PLAN 5/16 TYP 5/16 TYP CONNECTION AT ELEVATOR PIT ELEVATOR PIT FOOTING, SEE 11/S501 1/4 1.1/2" NON-SHRINK GROUT STEEL COLUMN, SEE PLAN AND SCHEDULE D
