Structural · S-KHJE4

Base Pl Below

Materials

anchor

Elements

Columns Bracing Anchors / Embeds Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection

About this detail

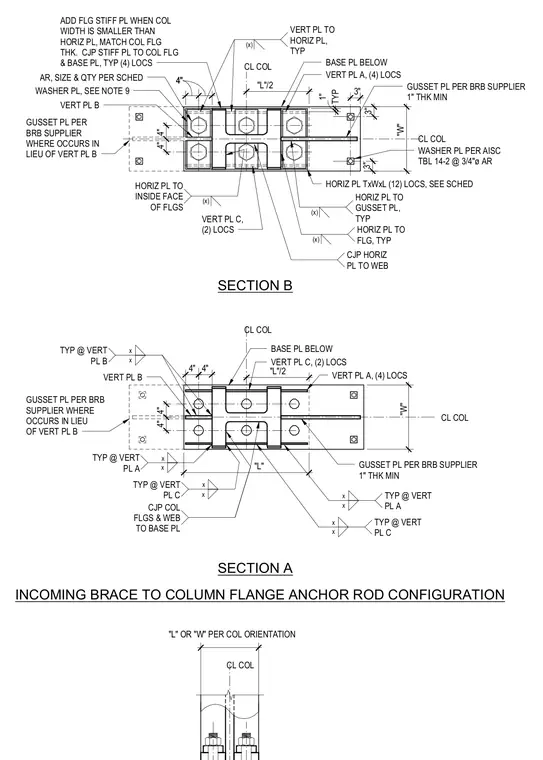

Anchor rod configuration and base plate connections for an incoming brace to a structural steel column flange. The assembly features a base plate below the column, complete with vertical and horizontal plates configured with complete-joint-penetration welds to the column flanges and web. Washer plates are provided per AISC Table 14-2 at three-quarter-inch diameter anchor rods. Additional flange stiffener plates are added when the column width is smaller than the horizontal plate, matched to the column flange thickness and welded with complete-joint-penetration welds. Gusset plates for buckling-restrained braces are included at locations specified per the brace supplier with a one-inch minimum thickness.
