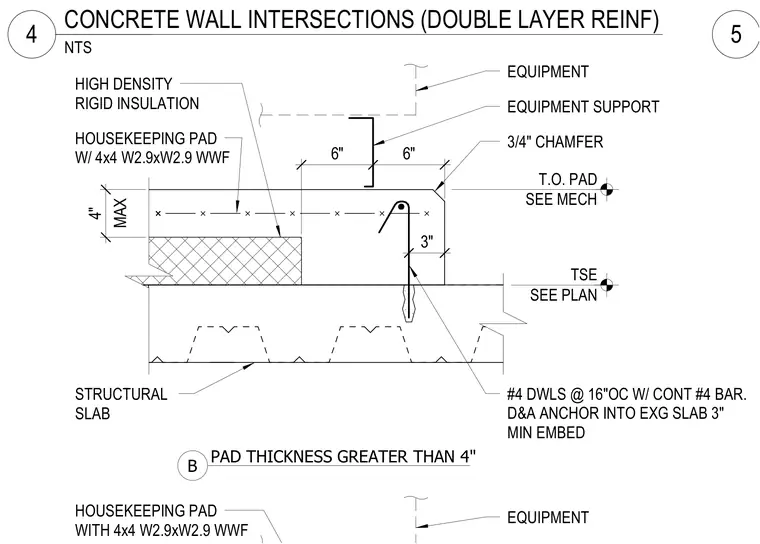

A mechanical equipment housekeeping pad rests on a structural slab over high-density rigid insulation. The pad is reinforced with 4x4 W2.9xW2.9 welded wire fabric and number four dowels spaced at sixteen inches on center with a continuous number four bar, anchored into the existing slab with a three-inch minimum embedment. The edge of the pad features a three-quarter-inch chamfer.
HOUSEKEEPING PAD WITH 4x4 W2.9xW2.9 WWF SEE MECH T.O. PAD EQUIPMENT SUPPORT EQUIPMENT SEE PLAN TSE HIGH DENSITY RIGID INSULATION MAX 4" #4 DWLS @ 16"OC W/ CONT #4 BAR. D&A ANCHOR INTO EXG SLAB 3" MIN EMBED STRUCTURAL SLAB PAD THICKNESS GREATER THAN 4" B 3/4" CHAMFER 6" 6" HOUSEKEEPING PAD W/ 4x4 W2.9xW2.9 WWF 3" EQUIPMENT 5 NTS 4 CONCRETE WALL INTERSECTIONS (DOUBLE LAYER REINF)
