A wide-flange beam frames into an HSS column using a plate detailed as thickness t times length L times width W with erection bolts as required per schedule. The HSS column is slotted as required, with the plate slot sized one-sixteenth inch wider than the plate itself. A trim plate is provided at one-sided connections, maintaining a half-inch clearance to the end of the plate. At the top of the HSS column, a quarter-inch cap plate is installed with a continuous seal weld all around. Fillet welds of size t1 are applied to three sides typically, while welds of size t2 connect the plate components. Dimension X and the schedule are referenced to specific plan details.

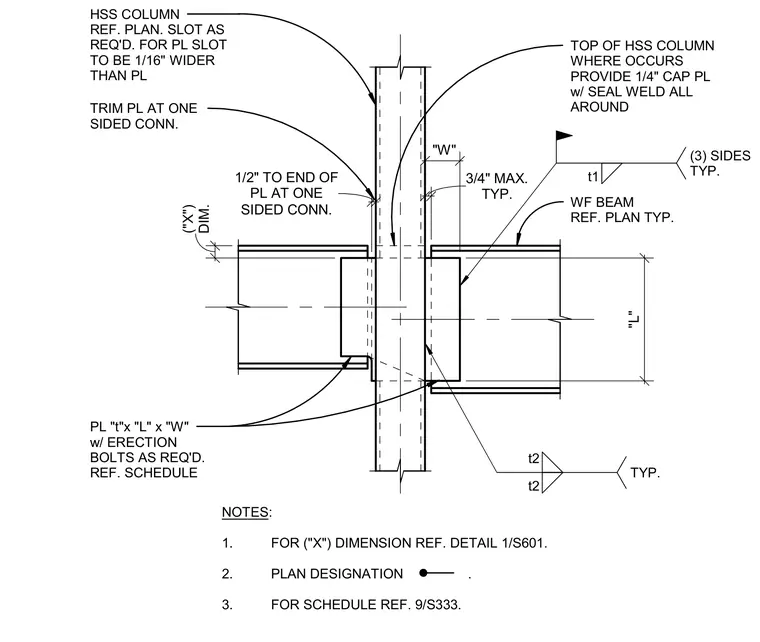

HSS COLUMN REF. PLAN. SLOT AS REQ'D. FOR PL SLOT TO BE 1/16" WIDER THAN PL TRIM PL AT ONE SIDED CONN. SIDED CONN. 1/2" TO END OF PL AT ONE TOP OF HSS COLUMN WHERE OCCURS PROVIDE 1/4" CAP PL w/ SEAL WELD ALL AROUND WF BEAM REF. PLAN TYP. t2 t2 TYP. "L" "W" TYP. 3/4" MAX. PL "t"x "L" x "W" w/ ERECTION BOLTS AS REQ'D. REF. SCHEDULE NOTES: 1. FOR ("X") DIMENSION REF. DETAIL 1/S601. 2. PLAN DESIGNATION . 3. FOR SCHEDULE REF. 9/S333. DIM. ("X") t1 (3) SIDES TYP.
