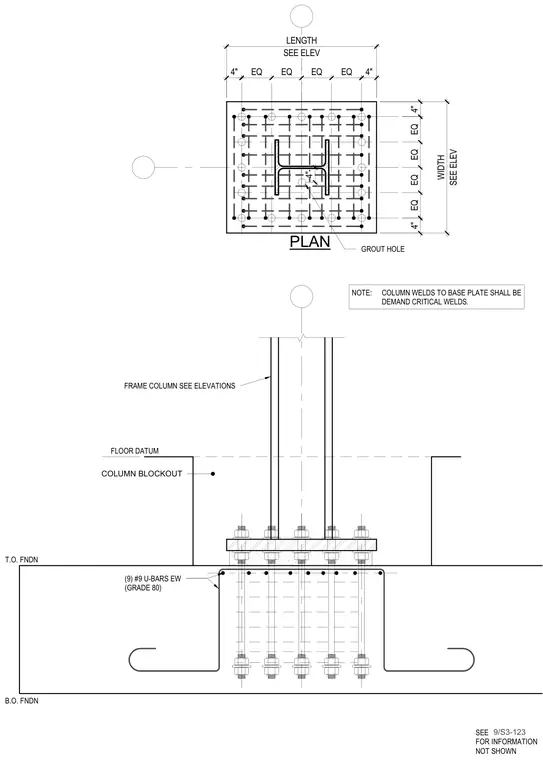

A structural steel buckling restrained braced frame column connects to a thick base plate secured by multiple anchor bolts embedded into a concrete foundation. A column blockout is provided around the base with a designated grout hole for leveling and grouting beneath the base plate. Nine number nine Grade 80 U-bars run each way near the top of the foundation for reinforcement. Column welds to the base plate are specified as demand critical welds.
PLAN FRAME COLUMN SEE ELEVATIONS SEE ELEV WIDTH SEE ELEV LENGTH FLOOR DATUM COLUMN BLOCKOUT 4" GROUT HOLE NOTE: COLUMN WELDS TO BASE PLATE SHALL BE DEMAND CRITICAL WELDS. B.O. FNDN T.O. FNDN (9) #9 U-BARS EW (GRADE 80) 4" 4" SEE FOR INFORMATION NOT SHOWN 9/S3-123 EQ EQ EQ EQ EQ EQ EQ EQ 4" 4"
