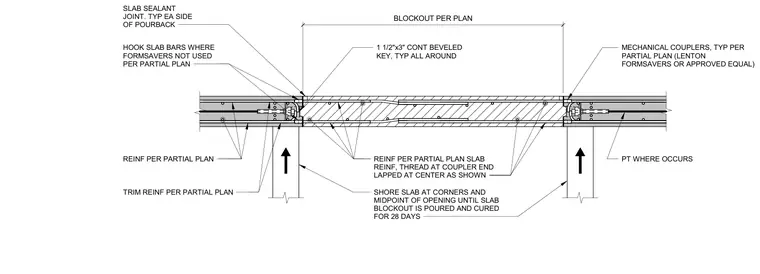

A concrete slab blockout and pourback assembly incorporates mechanical couplers such as Lenton Formsavers or approved equals. Slab reinforcing bars are threaded at the coupler ends and lapped at the center of the pourback. A continuous 1-1/2 x 3 inch beveled key is provided all around the joint, with slab sealant joints located on each side of the pourback. Where formsavers are not used, slab bars are hooked per the partial plan. Shoring must be maintained at the corners and midpoint of the opening until the slab blockout is poured and cured for 28 days.
BLOCKOUT PER PLAN HOOK SLAB BARS WHERE FORMSAVERS NOT USED PER PARTIAL PLAN REINF PER PARTIAL PLAN TRIM REINF PER PARTIAL PLAN 1 1/2"x3" CONT BEVELED KEY, TYP ALL AROUND MECHANICAL COUPLERS, TYP PER PARTIAL PLAN (LENTON FORMSAVERS OR APPROVED EQUAL) PT WHERE OCCURS REINF PER PARTIAL PLAN SLAB REINF, THREAD AT COUPLER END LAPPED AT CENTER AS SHOWN SHORE SLAB AT CORNERS AND MIDPOINT OF OPENING UNTIL SLAB BLOCKOUT IS POURED AND CURED FOR 28 DAYS SLAB SEALANT JOINT. TYP EA SIDE OF POURBACK
