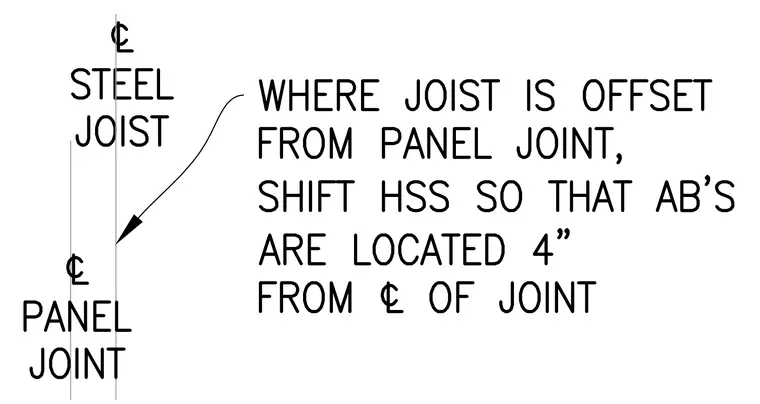

Where the steel joist is offset from the panel joint, the hollow structural section is shifted so that the anchor bolts are located four inches from the centerline of the joint.
