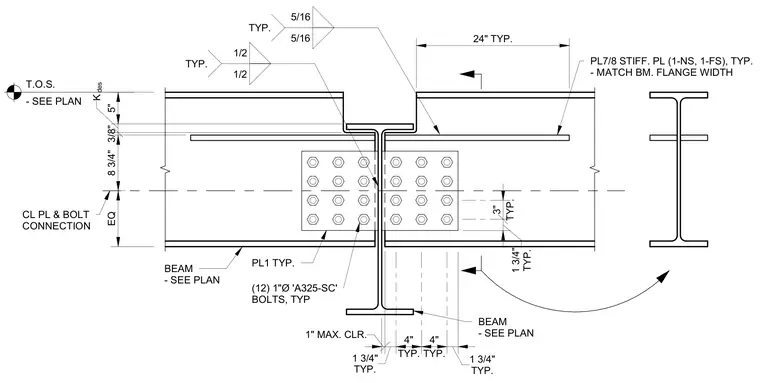

Two structural steel beams meet end-to-end with a one-inch maximum typical clearance, joined by connection plates on both sides secured with twelve one-inch diameter A325-SC high-strength bolts. Seven-eighths-inch thick stiffener plates matching the beam flange width are welded to the web and flanges using half-inch and five-sixteenths-inch fillet welds. The top of steel and beam sizes are sized per plan, maintaining alignment across the collector span.
EQ 8 3/4" 3/8" K 5" des 24" TYP. 1" MAX. CLR. TYP. 1 3/4" TYP. 4" TYP. 4" TYP. 1 3/4" TYP. 1 3/4" TYP. 3" BEAM - SEE PLAN BEAM - SEE PLAN (12) 1"Ø 'A325-SC' BOLTS, TYP CL PL & BOLT CONNECTION PL1 TYP. PL7/8 STIFF. PL (1-NS, 1-FS), TYP. - MATCH BM. FLANGE WIDTH 1/2 1/2 TYP. 5/16 5/16 TYP. T.O.S. - SEE PLAN
