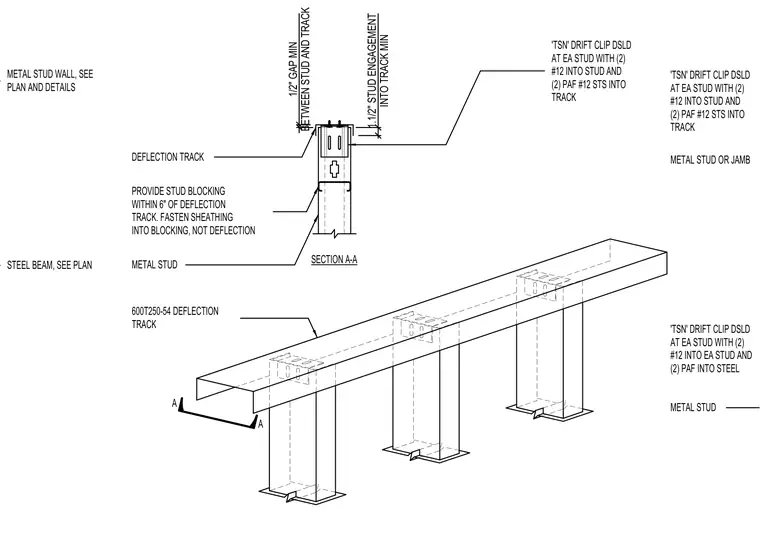

Cold-formed metal studs interface with a deflection track positioned beneath a structural steel beam or deck assembly. A one-half-inch minimum gap is maintained between the top of the stud and the deflection track, requiring a minimum one-and-one-half-inch stud engagement into the track. A TSN drift clip is attached to each stud using two number-twelve screws into the stud and two powder-actuated fasteners into the track or steel support. Stud blocking is provided within six inches of the deflection track to allow sheathing attachment directly into the blocking rather than the deflection track.
STEEL BEAM, SEE PLAN METAL STUD WALL, SEE PLAN AND DETAILS SECTION A-A METAL STUD 600T250-54 DEFLECTION TRACK A A DEFLECTION TRACK PROVIDE STUD BLOCKING WITHIN 6" OF DEFLECTION TRACK. FASTEN SHEATHING INTO BLOCKING, NOT DEFLECTION METAL STUD OR JAMB 'TSN' DRIFT CLIP DSLD AT EA STUD WITH (2) #12 INTO EA STUD AND (2) PAF INTO STEEL 'TSN' DRIFT CLIP DSLD AT EA STUD WITH (2) #12 INTO STUD AND (2) PAF #12 STS INTO METAL STUD TRACK 'TSN' DRIFT CLIP DSLD AT EA STUD WITH (2) #12 INTO STUD AND (2) PAF #12 STS INTO TRACK 1/2" GAP MIN BETWEEN STUD AND TRACK 1.1/2" STUD ENGAGEMENT INTO TRACK MIN
