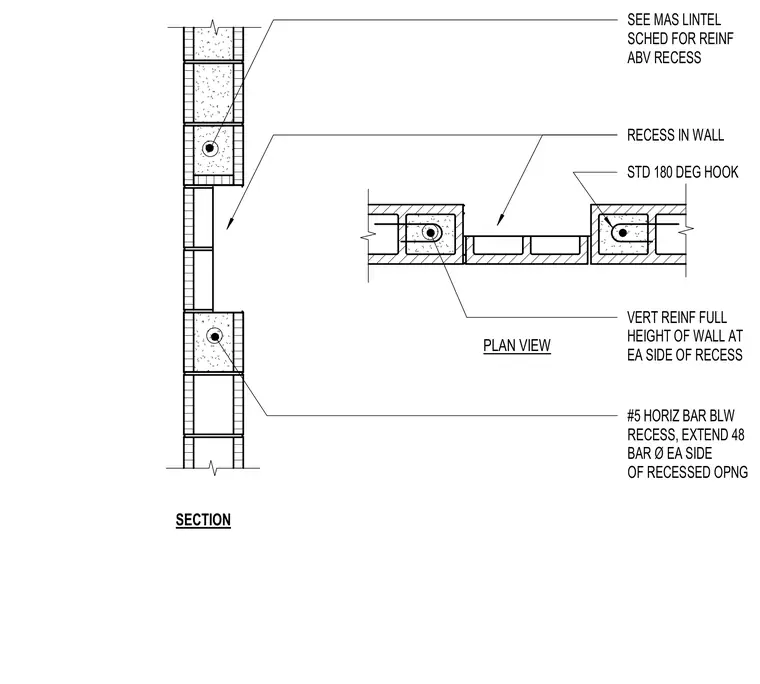

A masonry wall recess features continuous vertical reinforcement extending full height at each side of the opening. A number five horizontal bar is placed below the recess and extends forty-eight bar diameters past each side of the opening. The vertical reinforcement features standard one-hundred-eighty-degree hooks. Masonry lintel reinforcement above the recess is sized per the schedule.
SEE MAS LINTEL SCHED FOR REINF ABV RECESS RECESS IN WALL STD 180 DEG HOOK VERT REINF FULL HEIGHT OF WALL AT EA SIDE OF RECESS #5 HORIZ BAR BLW RECESS, EXTEND 48 BAR Ø EA SIDE OF RECESSED OPNG PLAN VIEW SECTION
