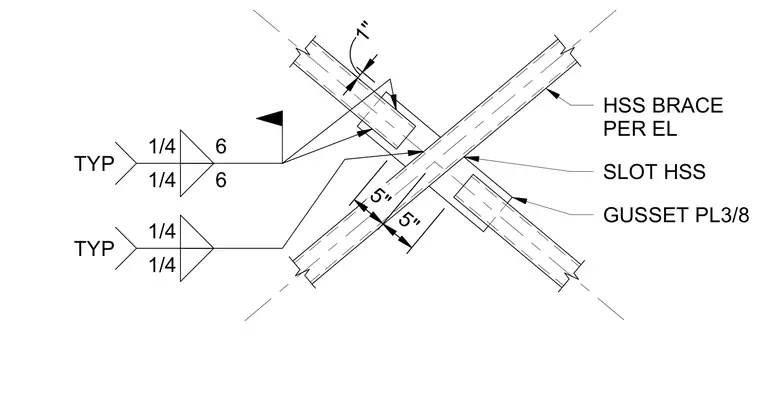

A hollow structural section brace connects via a three-eighths-inch thick gusset plate inserted into a slotted HSS member. The connection is secured with quarter-inch fillet welds of six-inch typical length along the gusset plate and brace interface.
