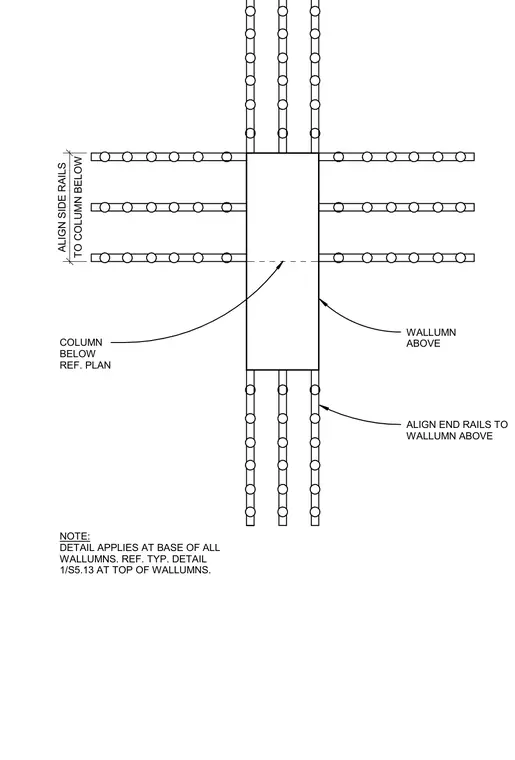

Side rails align to the column below while end rails align to the wallumn above. The detail applies at the base of all wallumns with reference made to the plan for the column below. Additional reference is made to a typical detail at the top of the wallumns.
WALLUMN ABOVE COLUMN BELOW REF. PLAN TO COLUMN BELOW ALIGN SIDE RAILS ALIGN END RAILS TO WALLUMN ABOVE NOTE: DETAIL APPLIES AT BASE OF ALL WALLUMNS. REF. TYP. DETAIL 1/S5.13 AT TOP OF WALLUMNS.
