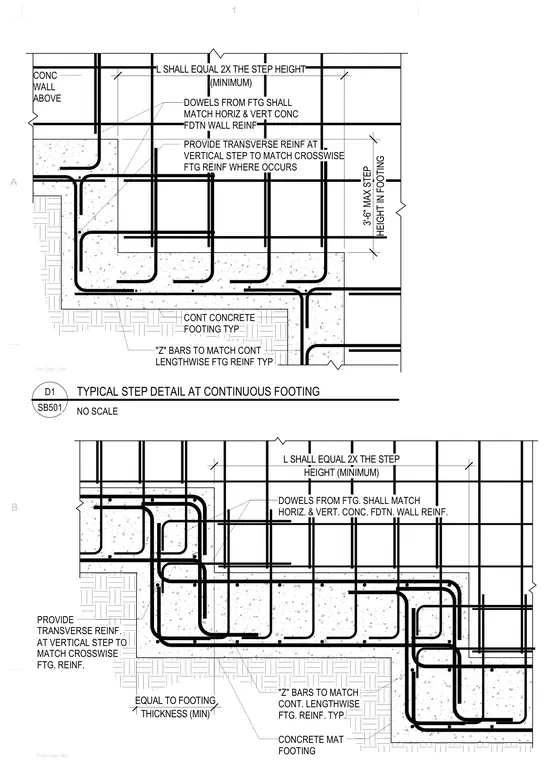

Reinforcement configuration at a step in a continuous concrete footing and foundation wall. The continuous concrete footing incorporates lengthwise reinforcement tied with typical Z-bars and transverse reinforcement at the vertical step. Dowels extending from the footing match the horizontal and vertical reinforcement of the concrete foundation wall above. The minimum lap length or dimension L at the step equals twice the step height, with a maximum step height in the footing limited to three feet six inches.
Ftng-Step-Mat CONCRETE MAT FOOTING "Z" BARS TO MATCH CONT. LENGTHWISE FTG. REINF. TYP. DOWELS FROM FTG. SHALL MATCH HORIZ. & VERT. CONC. FDTN. WALL REINF. PROVIDE TRANSVERSE REINF. AT VERTICAL STEP TO MATCH CROSSWISE FTG. REINF. HEIGHT (MINIMUM) L SHALL EQUAL 2X THE STEP THICKNESS (MIN) EQUAL TO FOOTING PROVIDE TRANSVERSE REINF AT VERTICAL STEP TO MATCH CROSSWISE FTG REINF WHERE OCCURS CONT CONCRETE FOOTING TYP DOWELS FROM FTG SHALL MATCH HORIZ & VERT CONC FDTN WALL REINF "Z" BARS TO MATCH CONT LENGTHWISE FTG REINF TYP Ftng-Step-Cont (MINIMUM) L SHALL EQUAL 2X THE STEP HEIGHT HEIGHT IN FOOTING 3'-6" MAX STEP CONC WALL ABOVE B A 1 NO SCALE SB501 D1 TYPICAL STEP DETAIL AT CONTINUOUS FOOTING
