The inside corner hollow structural section girt connects to the building frame at the grid intersection. Two 1/2-inch by 3-1/2-inch by 6-inch plates secure the assembly with two 3/4-inch diameter A325-SC-OVS bolts spaced at 3 inches on center. A cap plate thickness matches the hollow structural section, and a girt bracket is provided per sheet E20/S-560. Welds sized at 3/16-inch are specified on four sides.

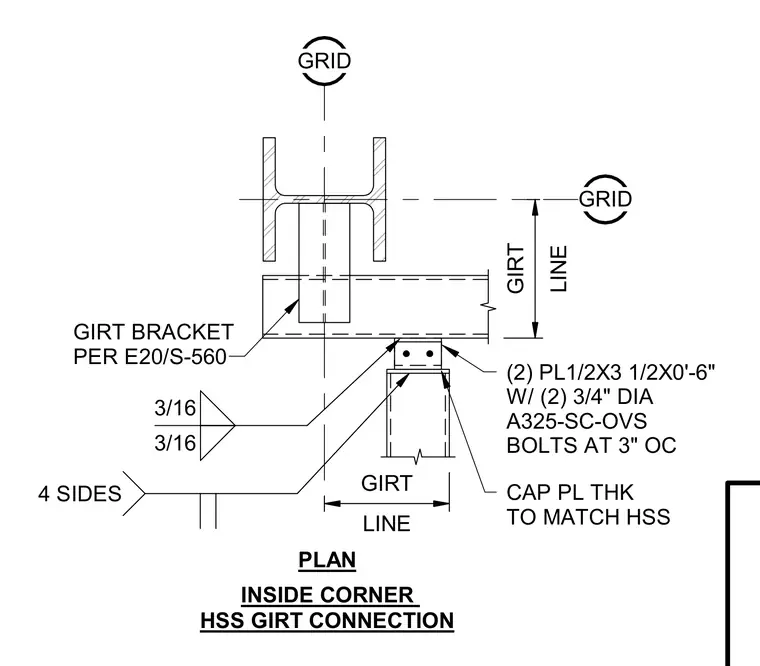

INSIDE CORNER HSS GIRT CONNECTION PLAN GRID LINE GIRT LINE GIRT 4 SIDES 3/16 3/16 GRID (2) PL1/2X3 1/2X0'-6" W/ (2) 3/4" DIA A325-SC-OVS BOLTS AT 3" OC CAP PL THK TO MATCH HSS GIRT BRACKET PER P E20/S-560
