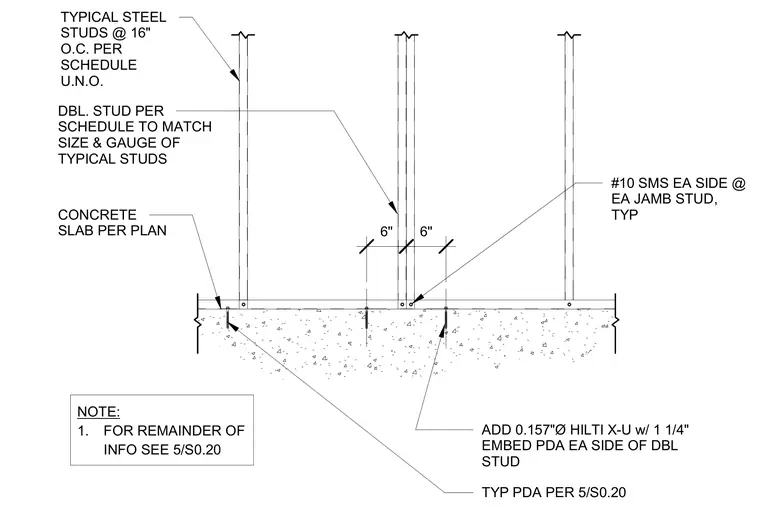

Cold-formed steel framing bears on a six-inch concrete slab sized per plan. Double studs match the size and gauge of typical studs spaced at sixteen inches on center. Power-actuated fasteners with a 0.157-inch diameter and one-and-one-quarter-inch embedment anchor each side of the double stud. Number 10 self-tapping metal screws fasten each side at each jamb stud typically.
6" 6" CONCRETE SLAB PER PLAN DBL. STUD PER SCHEDULE TO MATCH SIZE & GAUGE OF TYPICAL STUDS TYPICAL STEEL STUDS @ 16" O.C. PER SCHEDULE U.N.O. #10 SMS EA SIDE @ EA JAMB STUD, TYP ADD 0.157"Ø HILTI X-U w/ 1 1/4" EMBED PDA EA SIDE OF DBL STUD NOTE: 1. FOR REMAINDER OF INFO SEE 5/S0.20 TYP PDA PER 5/S0.20
